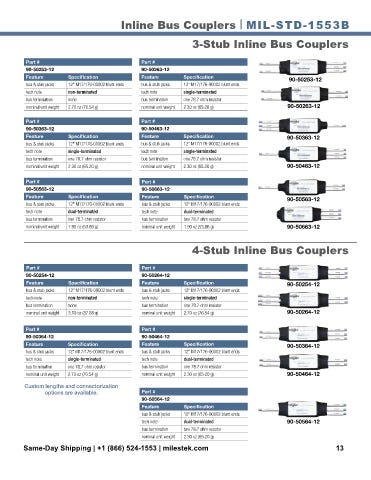

Inline Bus Couplers MIL-STD-1553B

3-Stub Inline Bus Couplers

Part # Part #
90-50253-12 90-50263-12
Feature Specification Feature Specification 90-50253-12
bus & stub jacks 12" M17/176-00002 blunt ends bus & stub jacks 12" M17/176-00002 blunt ends
tech note non-terminated tech note single-terminated
bus termination none bus termination one 78.7 ohm resistor
nominal unit weight 2.70 oz (76.54 g) nominal unit weight 2.30 oz (65.20 g) 90-50263-12

Part # Part #
90-50363-12 90-50463-12
Feature Specification Feature Specification 90-50363-12
bus & stub jacks 12" M17/176-00002 blunt ends bus & stub jacks 12" M17/176-00002 blunt ends
tech note single-terminated tech note single-terminated
bus termination one 78.7 ohm resistor bus termination one 78.7 ohm resistor
nominal unit weight 2.30 oz (65.20 g) nominal unit weight 2.30 oz (65.20 g) 90-50463-12

Part # Part #
90-50563-12 90-50663-12
Feature Specification Feature Specification 90-50563-12
bus & stub jacks 12" M17/176-00002 blunt ends bus & stub jacks 12" M17/176-00002 blunt ends
C
tech note dual-terminated tech note dual-terminated
M
bus termination two 78.7 ohm resistor bus termination two 78.7 ohm resistor
Y
nominal unit weight 1.90 oz (53.86 g) nominal unit weight 1.90 oz (53.86 g) 90-50663-12
CM
MY
4-Stub Inline Bus Couplers
CY
CMY
Part # Part #
K
90-50254-12 90-50264-12
Feature Specification Feature Specification 90-50254-12
bus & stub jacks 12" M17/176-00002 blunt ends bus & stub jacks 12" M17/176-00002 blunt ends
tech note non-terminated tech note single-terminated
bus termination none bus termination one 78.7 ohm resistor
nominal unit weight 3.10 oz (87.88 g) nominal unit weight 2.70 oz (76.54 g) 90-50264-12

Part # Part #
90-50364-12 90-50464-12
Feature Specification Feature Specification 90-50364-12
bus & stub jacks 12" M17/176-00002 blunt ends bus & stub jacks 12" M17/176-00002 blunt ends
tech note single-terminated tech note dual-terminated
bus termination one 78.7 ohm resistor bus termination one 78.7 ohm resistor
nominal unit weight 2.70 oz (76.54 g) nominal unit weight 2.30 oz (65.20 g) 90-50464-12

Custom lengths and connectorization
options are available. Part #
90-50564-12
Feature Specification
bus & stub jacks 12" M17/176-00002 blunt ends
tech note dual-terminated 90-50564-12
bus termination two 78.7 ohm resistor
nominal unit weight 2.30 oz (65.20 g)
