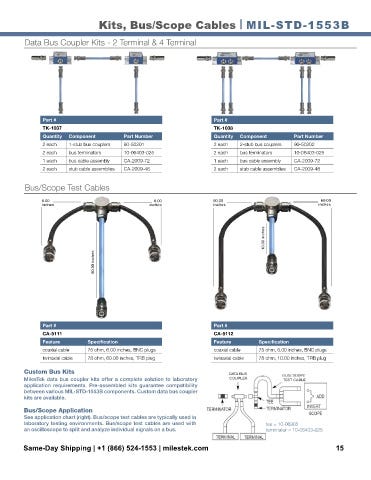

Kits, Bus/Scope Cables MIL-STD-1553B

Data Bus Coupler Kits - 2 Terminal & 4 Terminal

Part # Part #
TK-1037 TK-1038
Quantity Component Part Number Quantity Component Part Number
2 each 1-stub bus couplers 90-50201 2 each 2-stub bus couplers 90-50202
2 each bus terminators 10-06403-025 2 each bus terminators 10-06403-025
1 each bus cable assembly CA-2009-72 1 each bus cable assembly CA-2009-72
2 each stub cable assemblies CA-2009-48 2 each stub cable assemblies CA-2009-48

Bus/Scope Test Cables

C
M
Y
CM
MY
CY
CMY
K

Part # Part #
CA-5111 CA-5112
Feature Specification Feature Specification
coaxial cable 75 ohm, 6.00 inches, BNC plugs coaxial cable 75 ohm, 6.00 inches, BNC plugs
twinaxial cable 78 ohm, 60.00 inches, TRB plug twinaxial cable 78 ohm, 10.00 inches, TRB plug

Custom Bus Kits
MilesTek data bus coupler kits offer a complete solution to laboratory
application requirements. Pre-assembled kits guarantee compatibility
between various MIL-STD-1553B components. Custom data bus coupler
kits are available.

Bus/Scope Application
See application chart (right). Bus/scope test cables are typically used in
laboratory testing environments. Bus/scope test cables are used with tee = 10-06905
an oscilloscope to split and analyze individual signals on a bus. terminator = 10-06403-025
