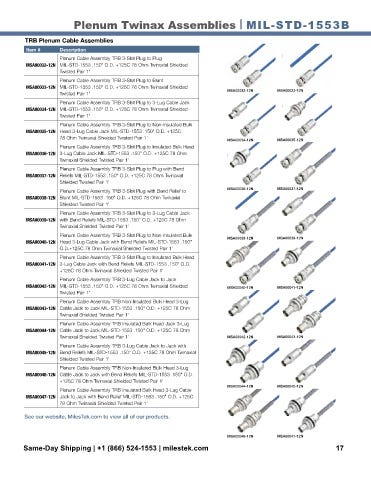

Plenum Twinax Assemblies MIL-STD-1553B

TRB Plenum Cable Assemblies
Item # Description
Plenum Cable Assembly TRB 3-Slot Plug to Plug
MSA00032-12N MIL-STD-1553 .150" O.D. +125C 78 Ohm Twinaxial Shielded
Twisted Pair 1'
Plenum Cable Assembly TRB 3-Slot Plug to Blunt
MSA00033-12N MIL-STD-1553 .150" O.D. +125C 78 Ohm Twinaxial Shielded
Twisted Pair 1' MSA00032-12N MSA00033-12N
Plenum Cable Assembly TRB 3-Slot Plug to 3-Lug Cable Jack
MSA00034-12N MIL-STD-1553 .150" O.D. +125C 78 Ohm Twinaxial Shielded
Twisted Pair 1'
Plenum Cable Assembly TRB 3-Slot Plug to Non-Insulated Bulk
MSA00035-12N Head 3-Lug Cable Jack MIL-STD-1553 .150" O.D. +125C
78 Ohm Twinaxial Shielded Twisted Pair 1' MSA00034-12N MSA00035-12N
Plenum Cable Assembly TRB 3-Slot Plug to Insulated Bulk Head
MSA00036-12N 3-Lug Cable Jack MIL-STD-1553 .150" O.D. +125C 78 Ohm
Twinaxial Shielded Twisted Pair 1'
Plenum Cable Assembly TRB 3-Slot Plug to Plug with Bend
MSA00037-12N Reliefs MIL-STD-1553 .150" O.D. +125C 78 Ohm Twinaxial
Shielded Twisted Pair 1'
Plenum Cable Assembly TRB 3-Slot Plug with Bend Relief to MSA00036-12N MSA00037-12N
MSA00038-12N Blunt MIL-STD-1553 .150" O.D. +125C 78 Ohm Twinaxial
Shielded Twisted Pair 1'
C
Plenum Cable Assembly TRB 3-Slot Plug to 3-Lug Cable Jack
M
MSA00039-12N with Bend Reliefs MIL-STD-1553 .150" O.D. +125C 78 Ohm
Y Twinaxial Shielded Twisted Pair 1'
CM Plenum Cable Assembly TRB 3-Slot Plug to Non-Insulated Bulk MSA00038-12N MSA00039-12N
MY MSA00040-12N Head 3-Lug Cable Jack with Bend Reliefs MIL-STD-1553 .150"
O.D.+125C 78 Ohm Twinaxial Shielded Twisted Pair 1'
CY
Plenum Cable Assembly TRB 3-Slot Plug to Insulated Bulk Head
CMY
MSA00041-12N 3-Lug Cable Jack with Bend Reliefs MIL-STD-1553 .150" O.D.
K +125C 78 Ohm Twinaxial Shielded Twisted Pair 1'
Plenum Cable Assembly TRB 3-Lug Cable Jack to Jack
MSA00042-12N MIL-STD-1553 .150" O.D. +125C 78 Ohm Twinaxial Shielded MSA00040-12N MSA00041-12N
Twisted Pair 1'
Plenum Cable Assembly TRB Non-Insulated Bulk Head 3-Lug
MSA00043-12N Cable Jack to Jack MIL-STD-1553 .150" O.D. +125C 78 Ohm
Twinaxial Shielded Twisted Pair 1'
Plenum Cable Assembly TRB Insulated Bulk Head Jack 3-Lug
MSA00044-12N Cable Jack to Jack MIL-STD-1553 .150" O.D. +125C 78 Ohm
Twinaxial Shielded Twisted Pair 1' MSA00042-12N MSA00043-12N
Plenum Cable Assembly TRB 3-Lug Cable Jack to Jack with
MSA00045-12N Bend Reliefs MIL-STD-1553 .150" O.D. +125C 78 Ohm Twinaxial
Shielded Twisted Pair 1'
Plenum Cable Assembly TRB Non-Insulated Bulk Head 3-Lug
MSA00046-12N Cable Jack to Jack with Bend Reliefs MIL-STD-1553 .150" O.D.
+125C 78 Ohm Twinaxial Shielded Twisted Pair 1'
MSA00044-12N MSA00045-12N
Plenum Cable Assembly TRB Insulated Bulk Head 3-Lug Cable
MSA00047-12N Jack to Jack with Bend Relief MIL-STD-1553 .150" O.D. +125C
78 Ohm Twinaxial Shielded Twisted Pair 1'

See our website, MilesTek.com to view all of our products.

MSA00046-12N MSA00047-12N
