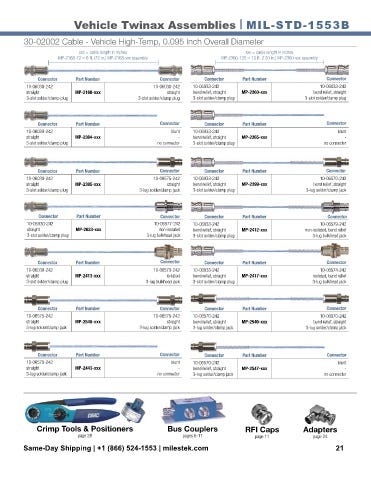

Vehicle Twinax Assemblies MIL-STD-1553B

30-02002 Cable - Vehicle High-Temp, 0.095 Inch Overall Diameter
xxx = cable length in inches xxx = cable length in inches
MP-2168-72 = 6 ft. (72 in.) MP-2168-xxx assembly MP-2360-120 = 10 ft. (120 in.) MP-2360-xxx assembly

Connector Part Number Connector Connector Part Number Connector
10-06030-242 10-06030-242 10-06033-242 10-06033-242
straight MP-2168-xxx straight bend relief, straight MP-2360-xxx bend relief, straight
3-slot solder/clamp plug 3-slot solder/clamp plug 3-slot solder/clamp plug 3-slot solder/clamp plug

Connector Part Number Connector Connector Part Number Connector
10-06030-242 blunt 10-06033-242 blunt
straight MP-2364-xxx - bend relief, straight MP-2365-xxx -
3-slot solder/clamp plug no connector 3-slot solder/clamp plug no connector

Connector Part Number Connector Connector Part Number Connector
10-06030-242 10-06575-242 10-06033-242 10-06570-242
straight MP-2395-xxx straight bend relief, straight MP-2399-xxx bend relief, straight
3-slot solder/clamp plug 3-lug solder/clamp jack 3-slot solder/clamp plug 3-lug solder/clamp jack

C
M Connector Part Number Connector Connector Part Number Connector
Y 10-06030-242 10-06577-242 10-06033-242 10-06579-242
straight MP-2623-xxx non-isolated bend relief, straight MP-2412-xxx non-isolated, bend relief
CM 3-slot solder/clamp plug 3-lug bulkhead jack 3-slot solder/clamp plug 3-lug bulkhead jack
MY
CY
CMY Connector
Connector Part Number Connector Part Number Connector
K 10-06030-242 10-06573-242 10-06033-242 10-06574-242
straight MP-2413-xxx isolated bend relief, straight MP-2417-xxx isolated, bend relief
3-slot solder/clamp plug 3-lug bulkhead jack 3-slot solder/clamp plug 3-lug bulkhead jack

Connector Part Number Connector Connector Part Number Connector
10-06575-242 10-06575-242 10-06570-242 10-06570-242
straight MP-2545-xxx straight bend relief, straight MP-2546-xxx bend relief, straight
3-lug solder/clamp jack 3-lug solder/clamp jack 3-lug solder/clamp jack 3-lug solder/clamp jack

Connector Part Number Connector Connector Part Number Connector
10-06575-242 blunt 10-06570-242 blunt
straight MP-2443-xxx - bend relief, straight MP-2547-xxx -
3-lug solder/clamp jack no connector 3-lug solder/clamp jack no connector
