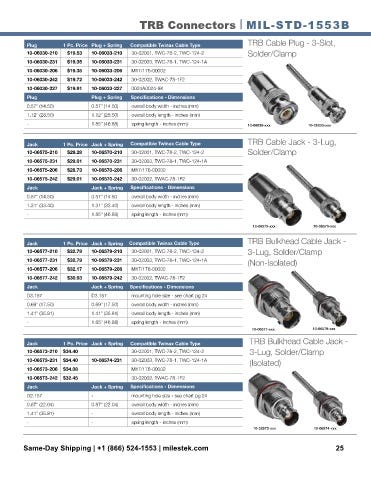

TRB Connectors MIL-STD-1553B

TRB Cable Plug - 3-Slot,
Plug 1 Pc. Price Plug + Spring Compatible Twinax Cable Type
10-06030-210 $19.53 10-06033-210 30-02001, TWC-78-2, TWC-124-2 Solder/Clamp
10-06030-231 $19.35 10-06033-231 30-02003, TWC-78-1, TWC-124-1A
10-06030-206 $19.35 10-06033-206 M17/176-00002
10-06030-242 $19.72 10-06033-242 30-02002, TWAC-78-1F2
10-06030-227 $19.91 10-06033-227 0024A0024-9X
Plug Plug + Spring Specifications - Dimensions
0.57" (14.50) 0.57" (14.50) overall body width - inches (mm)
1.12" (28.50) 1.12" (28.50) overall body length - inches (mm)
- 1.85" (46.88) spring length - inches (mm) 10-06030-xxx 10-06033-xxx

Jack 1 Pc. Price Jack + Spring Compatible Twinax Cable Type TRB Cable Jack - 3-Lug,
10-06575-210 $29.28 10-06570-210 30-02001, TWC-78-2, TWC-124-2 Solder/Clamp
10-06575-231 $29.01 10-06570-231 30-02003, TWC-78-1, TWC-124-1A
10-06575-206 $28.73 10-06570-206 M17/176-00002
10-06575-242 $29.01 10-06570-242 30-02002, TWAC-78-1F2
Jack Jack + Spring Specifications - Dimensions
0.57" (14.50) 0.57" (14.50 overall body width - inches (mm)
1.31" (33.40) 1.31" (33.40) overall body length - inches (mm)
C
- 1.85" (46.88) spring length - inches (mm)
M
Y 10-06575-xxx 10-06570-xxx
CM
MY Jack 1 Pc. Price Jack + Spring Compatible Twinax Cable Type TRB Bulkhead Cable Jack -
CY 10-06577-210 $32.79 10-06579-210 30-02001, TWC-78-2, TWC-124-2 3-Lug, Solder/Clamp
CMY 10-06577-231 $32.79 10-06579-231 30-02003, TWC-78-1, TWC-124-1A (Non-Isolated)
K 10-06577-206 $32.17 10-06579-206 M17/176-00002
10-06577-242 $30.93 10-06579-242 30-02002, TWAC-78-1F2
Jack Jack + Spring Specifications - Dimensions
D3.157 D3.157 mounting hole size - see chart pg 24
0.69" (17.50) 0.69" (17.50) overall body width - inches (mm)
1.41" (35.81) 1.41" (35.81) overall body length - inches (mm)
- 1.85" (46.88) spring length - inches (mm)
10-06577-xxx 10-06579-xxx
TRB Bulkhead Cable Jack -
Jack 1 Pc. Price Jack + Spring Compatible Twinax Cable Type
10-06573-210 $34.40 30-02001, TWC-78-2, TWC-124-2 3-Lug, Solder/Clamp
10-06573-231 $34.40 10-06574-231 30-02003, TWC-78-1, TWC-124-1A (Isolated)
10-06573-206 $34.08 M17/176-00002
10-06573-242 $32.45 30-02002, TWAC-78-1F2
Jack Jack + Spring Specifications - Dimensions
D2.157 - mounting hole size - see chart pg 24
0.87" (22.04) 0.87" (22.04) overall body width - inches (mm)
1.41" (35.81) - overall body length - inches (mm)
maximum panel - - spring length - inches (mm)
thickness in inches
10-06573-xxx 10-06574-xxx

Same-Day Shipping | +1 (866) 524-1553 | milestek.com 25
