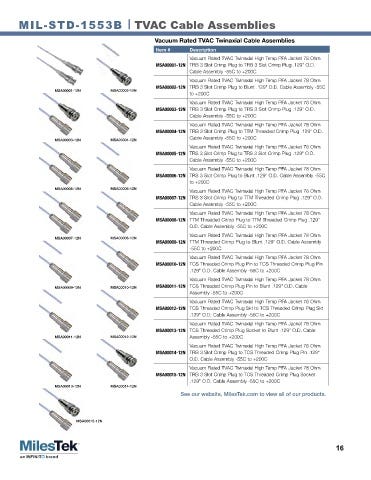

MIL-STD-1553B | TVAC Cable Assemblies

Vacuum Rated TVAC Twinaxial Cable Assemblies
Item # Description
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00001-12N TRB 3 Slot Crimp Plug to TRB 3 Slot Crimp Plug .129" O.D.
Cable Assembly -55C to +200C
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00002-12N TRB 3 Slot Crimp Plug to Blunt .129" O.D. Cable Assembly -55C
MSA00001-12N MSA00002-12N
to +200C
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00003-12N TRB 3 Slot Crimp Plug to TRS 3 Slot Crimp Plug .129" O.D.
Cable Assembly -55C to +200C
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00004-12N TRB 3 Slot Crimp Plug to TTM Threaded Crimp Plug .129" O.D.
Cable Assembly -55C to +200C
MSA00003-12N MSA00004-12N
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00005-12N TRS 3 Slot Crimp Plug to TRS 3 Slot Crimp Plug .129" O.D.
Cable Assembly -55C to +200C
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00006-12N TRS 3 Slot Crimp Plug to Blunt .129" O.D. Cable Assembly -55C
to +200C
MSA00005-12N MSA00006-12N
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00007-12N TRS 3 Slot Crimp Plug to TTM Threaded Crimp Plug .129" O.D.
Cable Assembly -55C to +200C
C
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
M
MSA00008-12N TTM Threaded Crimp Plug to TTM Threaded Crimp Plug .129"
Y O.D. Cable Assembly -55C to +200C
CM Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00007-12N MSA00008-12N
MY MSA00009-12N TTM Threaded Crimp Plug to Blunt .129" O.D. Cable Assembly
-55C to +200C
CY
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
CMY
MSA00010-12N TCS Threaded Crimp Plug Pin to TCS Threaded Crimp Plug Pin
K .129" O.D. Cable Assembly -55C to +200C
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00009-12N MSA00010-12N MSA00011-12N TCS Threaded Crimp Plug Pin to Blunt .129" O.D. Cable
Assembly -55C to +200C
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00012-12N TCS Threaded Crimp Plug Skt to TCS Threaded Crimp Plug Skt
.129" O.D. Cable Assembly -55C to +200C
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00013-12N TCS Threaded Crimp Plug Socket to Blunt .129" O.D. Cable
MSA00011-12N MSA00012-12N Assembly -55C to +200C
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00014-12N TRB 3 Slot Crimp Plug to TCS Threaded Crimp Plug Pin .129"
O.D. Cable Assembly -55C to +200C
Vacuum Rated TVAC Twinaxial High Temp PFA Jacket 78 Ohm
MSA00015-12N TRB 3 Slot Crimp Plug to TCS Threaded Crimp Plug Socket
.129" O.D. Cable Assembly -55C to +200C
MSA00013-12N MSA00014-12N
See our website, MilesTek.com to view all of our products.

MSA00015-12N
