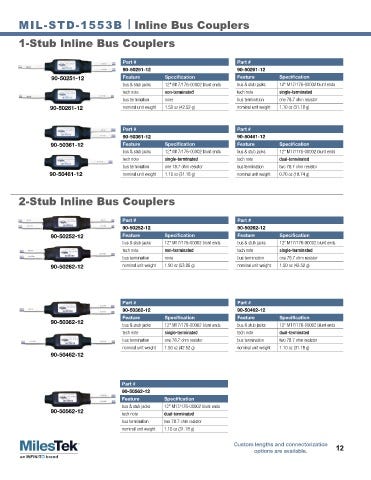

MIL-STD-1553B | Inline Bus Couplers

1-Stub Inline Bus Couplers

Part # Part #
90-50251-12 90-50261-12
90-50251-12 Feature Specification Feature Specification
bus & stub jacks 12" M17/176-00002 blunt ends bus & stub jacks 12" M17/176-00002 blunt ends
tech note non-terminated tech note single-terminated
bus termination none bus termination one 78.7 ohm resistor
90-50261-12 nominal unit weight 1.50 oz (42.52 g) nominal unit weight 1.10 oz (31.18 g)

Part # Part #
90-50361-12 90-50461-12
90-50361-12 Feature Specification Feature Specification
bus & stub jacks 12" M17/176-00002 blunt ends bus & stub jacks 12" M17/176-00002 blunt ends
tech note single-terminated tech note dual-terminated
bus termination one 78.7 ohm resistor bus termination two 78.7 ohm resistor
90-50461-12 nominal unit weight 1.10 oz (31.18 g) nominal unit weight 0.70 oz (19.74 g)

2-Stub Inline Bus Couplers

C
M
Part # Part #
Y
90-50252-12 90-50262-12
CM
90-50252-12 Feature Specification Feature Specification
MY bus & stub jacks 12" M17/176-00002 blunt ends bus & stub jacks 12" M17/176-00002 blunt ends
tech note non-terminated tech note single-terminated
CY
bus termination none bus termination one 78.7 ohm resistor
CMY
90-50262-12 nominal unit weight 1.90 oz (53.86 g) nominal unit weight 1.50 oz (42.52 g)
K

Part # Part #
90-50362-12 90-50462-12
Feature Specification Feature Specification
90-50362-12
bus & stub jacks 12" M17/176-00002 blunt ends bus & stub jacks 12" M17/176-00002 blunt ends
tech note single-terminated tech note dual-terminated
bus termination one 78.7 ohm resistor bus termination two 78.7 ohm resistor
nominal unit weight 1.50 oz (42.52 g) nominal unit weight 1.10 oz (31.18 g)
90-50462-12

Part #
90-50562-12
Feature Specification
bus & stub jacks 12" M17/176-00002 blunt ends
90-50562-12 tech note dual-terminated
bus termination two 78.7 ohm resistor
nominal unit weight 1.10 oz (31.18 g)

Custom lengths and connectorization 12
options are available.
