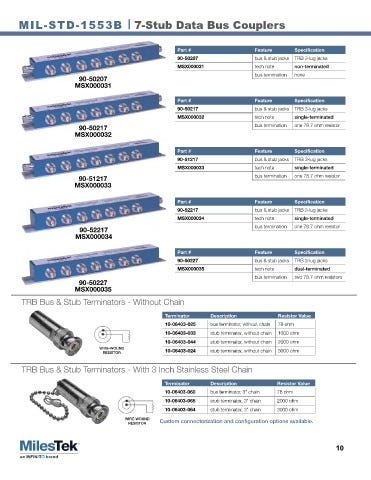

MIL-STD-1553B | 7-Stub Data Bus Couplers

Part # Feature Specification
90-50207 bus & stub jacks TRB 3-lug jacks
MSX000031 tech note non-terminated
bus termination none
90-50207
MSX000031

Part # Feature Specification
90-50217 bus & stub jacks TRB 3-lug jacks
MSX000032 tech note single-terminated
90-50217 bus termination one 78.7 ohm resistor
MSX000032

Part # Feature Specification
90-51217 bus & stub jacks TRB 3-lug jacks
MSX000033 tech note single-terminated
90-51217 bus termination one 78.7 ohm resistor
MSX000033

Part # Feature Specification
C
90-52217 bus & stub jacks TRB 3-lug jacks
M
MSX000034 tech note single-terminated
Y bus termination one 78.7 ohm resistor
90-52217
CM
MSX000034
MY
CY Part # Feature Specification
CMY 90-50227 bus & stub jacks TRB 3-lug jacks
K MSX000035 tech note dual-terminated
bus termination two 78.7 ohm resistors
90-50227
MSX000035

TRB Bus & Stub Terminators - Without Chain

Terminator Description Resistor Value
10-06403-025 bus terminator, without chain 78 ohm
10-06403-033 stub terminator, without chain 1000 ohm
10-06403-044 stub terminator, without chain 2000 ohm
WIRE-WOUND
RESISTOR 10-06403-024 stub terminator, without chain 3000 ohm

TRB Bus & Stub Terminators - With 3 Inch Stainless Steel Chain

Terminator Description Resistor Value
10-06403-060 bus terminator, 3" chain 78 ohm
10-06403-065 stub terminator, 3" chain 2000 ohm
10-06403-064 stub terminator, 3" chain 3000 ohm
WIRE-WOUND Custom connectorization and configuration options available.
RESISTOR
