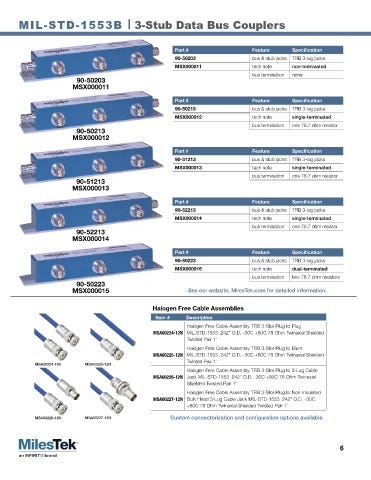

MIL-STD-1553B | 3-Stub Data Bus Couplers

Part # Feature Specification
90-50203 bus & stub jacks TRB 3-lug jacks
MSX000011 tech note non-terminated
bus termination none
90-50203
MSX000011

Part # Feature Specification
90-50213 bus & stub jacks TRB 3-lug jacks
MSX000012 tech note single-terminated
bus termination one 78.7 ohm resistor
90-50213
MSX000012

Part # Feature Specification
90-51213 bus & stub jacks TRB 3-lug jacks
MSX000013 tech note single-terminated
bus termination one 78.7 ohm resistor
90-51213
MSX000013

Part # Feature Specification
C
90-52213 bus & stub jacks TRB 3-lug jacks
M
MSX000014 tech note single-terminated
Y bus termination one 78.7 ohm resistor
90-52213
CM
MSX000014
MY
CY Part # Feature Specification
CMY 90-50223 bus & stub jacks TRB 3-lug jacks
K MSX000015 tech note dual-terminated
bus termination two 78.7 ohm resistors
90-50223
MSX000015 See our website, MilesTek.com for detailed information.

Halogen Free Cable Assemblies

Item # Description
Halogen Free Cable Assembly TRB 3-Slot Plug to Plug
MSA00224-12N MIL-STD-1553 .242" O.D. -30C +80C 78 Ohm Twinaxial Shielded
Twisted Pair 1'
Halogen Free Cable Assembly TRB 3-Slot Plug to Blunt
MSA00225-12N MIL-STD-1553 .242" O.D. -30C +80C 78 Ohm Twinaxial Shielded
Twisted Pair 1'
MSA00224-12N MSA00225-12N
Halogen Free Cable Assembly TRB 3-Slot Plug to 3-Lug Cable
MSA00226-12N Jack MIL-STD-1553 .242" O.D. -30C +80C 78 Ohm Twinaxial
Shielded Twisted Pair 1'
Halogen Free Cable Assembly TRB 3-Slot Plug to Non-Insulated
MSA00227-12N Bulk Head 3-Lug Cable Jack MIL-STD-1553 .242" O.D. -30C
+80C 78 Ohm Twinaxial Shielded Twisted Pair 1'
MSA00226-12N MSA00227-12N Custom connectorization and configuration options available.
