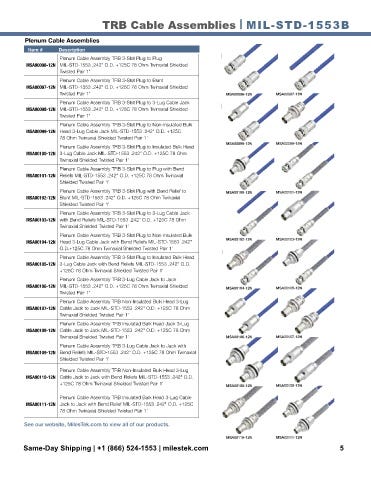

TRB Cable Assemblies MIL-STD-1553B

Plenum Cable Assemblies
Item # Description
Plenum Cable Assembly TRB 3-Slot Plug to Plug
MSA00096-12N MIL-STD-1553 .242" O.D. +125C 78 Ohm Twinaxial Shielded
Twisted Pair 1'
Plenum Cable Assembly TRB 3-Slot Plug to Blunt
MSA00097-12N MIL-STD-1553 .242" O.D. +125C 78 Ohm Twinaxial Shielded
Twisted Pair 1' MSA00096-12N MSA00097-12N
Plenum Cable Assembly TRB 3-Slot Plug to 3-Lug Cable Jack
MSA00098-12N MIL-STD-1553 .242" O.D. +125C 78 Ohm Twinaxial Shielded
Twisted Pair 1'
Plenum Cable Assembly TRB 3-Slot Plug to Non-Insulated Bulk
MSA00099-12N Head 3-Lug Cable Jack MIL-STD-1553 .242" O.D. +125C
78 Ohm Twinaxial Shielded Twisted Pair 1'
MSA00098-12N MSA00099-12N
Plenum Cable Assembly TRB 3-Slot Plug to Insulated Bulk Head
MSA00100-12N 3-Lug Cable Jack MIL-STD-1553 .242" O.D. +125C 78 Ohm
Twinaxial Shielded Twisted Pair 1'
Plenum Cable Assembly TRB 3-Slot Plug to Plug with Bend
MSA00101-12N Reliefs MIL-STD-1553 .242" O.D. +125C 78 Ohm Twinaxial
Shielded Twisted Pair 1'
Plenum Cable Assembly TRB 3-Slot Plug with Bend Relief to MSA00100-12N MSA00101-12N
MSA00102-12N Blunt MIL-STD-1553 .242" O.D. +125C 78 Ohm Twinaxial
Shielded Twisted Pair 1'
C
Plenum Cable Assembly TRB 3-Slot Plug to 3-Lug Cable Jack
M
MSA00103-12N with Bend Reliefs MIL-STD-1553 .242" O.D. +125C 78 Ohm
Y Twinaxial Shielded Twisted Pair 1'
CM Plenum Cable Assembly TRB 3-Slot Plug to Non-Insulated Bulk
MY MSA00104-12N Head 3-Lug Cable Jack with Bend Reliefs MIL-STD-1553 .242" MSA00102-12N MSA00103-12N
O.D.+125C 78 Ohm Twinaxial Shielded Twisted Pair 1'
CY
Plenum Cable Assembly TRB 3-Slot Plug to Insulated Bulk Head
CMY
MSA00105-12N 3-Lug Cable Jack with Bend Reliefs MIL-STD-1553 .242" O.D.
K +125C 78 Ohm Twinaxial Shielded Twisted Pair 1'
Plenum Cable Assembly TRB 3-Lug Cable Jack to Jack
MSA00106-12N MIL-STD-1553 .242" O.D. +125C 78 Ohm Twinaxial Shielded MSA00104-12N MSA00105-12N
Twisted Pair 1'
Plenum Cable Assembly TRB Non-Insulated Bulk Head 3-Lug
MSA00107-12N Cable Jack to Jack MIL-STD-1553 .242" O.D. +125C 78 Ohm
Twinaxial Shielded Twisted Pair 1'
Plenum Cable Assembly TRB Insulated Bulk Head Jack 3-Lug
MSA00108-12N Cable Jack to Jack MIL-STD-1553 .242" O.D. +125C 78 Ohm
Twinaxial Shielded Twisted Pair 1' MSA00106-12N MSA00107-12N
Plenum Cable Assembly TRB 3-Lug Cable Jack to Jack with
MSA00109-12N Bend Reliefs MIL-STD-1553 .242" O.D. +125C 78 Ohm Twinaxial
Shielded Twisted Pair 1'
Plenum Cable Assembly TRB Non-Insulated Bulk Head 3-Lug
MSA00110-12N Cable Jack to Jack with Bend Reliefs MIL-STD-1553 .242" O.D.
+125C 78 Ohm Twinaxial Shielded Twisted Pair 1' MSA00108-12N MSA00109-12N

Plenum Cable Assembly TRB Insulated Bulk Head 3-Lug Cable
MSA00111-12N Jack to Jack with Bend Relief MIL-STD-1553 .242" O.D. +125C
78 Ohm Twinaxial Shielded Twisted Pair 1'

See our website, MilesTek.com to view all of our products.
MSA00110-12N MSA00111-12N
