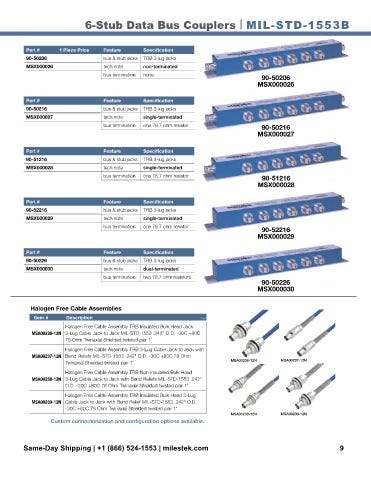

6-Stub Data Bus Couplers MIL-STD-1553B

Part # 1 Piece Price Feature Specification
90-50206 bus & stub jacks TRB 3-lug jacks
MSX000026 tech note non-terminated
bus termination none
90-50206
MSX000026

Part # Feature Specification
90-50216 bus & stub jacks TRB 3-lug jacks
MSX000027 tech note single-terminated
bus termination one 78.7 ohm resistor 90-50216
MSX000027

Part # Feature Specification
90-51216 bus & stub jacks TRB 3-lug jacks
MSX000028 tech note single-terminated
bus termination one 78.7 ohm resistor 90-51216
MSX000028

Part # Feature Specification
C
90-52216 bus & stub jacks TRB 3-lug jacks
M
MSX000029 tech note single-terminated
Y
bus termination one 78.7 ohm resistor
90-52216
MSX000029
CM
MY
CY Part # Feature Specification
CMY 90-50226 bus & stub jacks TRB 3-lug jacks
K MSX000030 tech note dual-terminated
bus termination two 78.7 ohm resistors
90-50226
MSX000030

Halogen Free Cable Assemblies

Item # Description
Halogen Free Cable Assembly TRB Insulated Bulk Head Jack
MSA00236-12N 3-Lug Cable Jack to Jack MIL-STD-1553 .242" O.D. -30C +80C
78 Ohm Twinaxial Shielded twisted pair 1'
Halogen Free Cable Assembly TRB 3-Lug Cable Jack to Jack with
MSA00237-12N Bend Reliefs MIL-STD-1553 .242" O.D. -30C +80C 78 Ohm
Twinaxial Shielded twisted pair 1' MSA00236-12N MSA00237-12N
Halogen Free Cable Assembly TRB Non-Insulated Bulk Head
MSA00238-12N 3-Lug Cable Jack to Jack with Bend Reliefs MIL-STD-1553 .242"
O.D. -30C +80C 78 Ohm Twinaxial Shielded twisted pair 1'
Halogen Free Cable Assembly TRB Insulated Bulk Head 3-Lug
MSA00239-12N Cable Jack to Jack with Bend Relief MIL-STD-1553 .242" O.D.
-30C +80C 78 Ohm Twinaxial Shielded twisted pair 1'
MSA00238-12N MSA00239-12N
Custom connectorization and configuration options available.

Same-Day Shipping | +1 (866) 524-1553 | milestek.com 9
