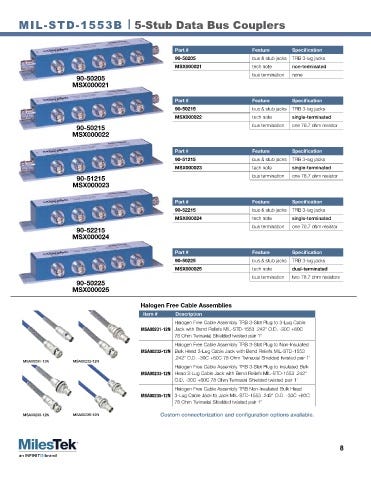

MIL-STD-1553B | 5-Stub Data Bus Couplers

Part # Feature Specification
90-50205 bus & stub jacks TRB 3-lug jacks
MSX000021 tech note non-terminated
bus termination none
90-50205
MSX000021

Part # Feature Specification
90-50215 bus & stub jacks TRB 3-lug jacks
MSX000022 tech note single-terminated
90-50215 bus termination one 78.7 ohm resistor
MSX000022

Part # Feature Specification
90-51215 bus & stub jacks TRB 3-lug jacks
MSX000023 tech note single-terminated
90-51215 bus termination one 78.7 ohm resistor
MSX000023

Part # Feature Specification
C
90-52215 bus & stub jacks TRB 3-lug jacks
M
MSX000024 tech note single-terminated
Y bus termination one 78.7 ohm resistor
90-52215
CM
MSX000024
MY
CY Part # Feature Specification
CMY 90-50225 bus & stub jacks TRB 3-lug jacks
K MSX000025 tech note dual-terminated
bus termination two 78.7 ohm resistors
90-50225
MSX000025

Halogen Free Cable Assemblies
Item # Description
Halogen Free Cable Assembly TRB 3-Slot Plug to 3-Lug Cable
MSA00231-12N Jack with Bend Reliefs MIL-STD-1553 .242" O.D. -30C +80C
78 Ohm Twinaxial Shielded twisted pair 1'
Halogen Free Cable Assembly TRB 3-Slot Plug to Non-Insulated
MSA00232-12N Bulk Head 3-Lug Cable Jack with Bend Reliefs MIL-STD-1553
.242" O.D. -30C +80C 78 Ohm Twinaxial Shielded twisted pair 1'
MSA00231-12N MSA00232-12N
Halogen Free Cable Assembly TRB 3-Slot Plug to Insulated Bulk
MSA00233-12N Head 3-Lug Cable Jack with Bend Reliefs MIL-STD-1553 .242"
O.D. -30C +80C 78 Ohm Twinaxial Shielded twisted pair 1'
Halogen Free Cable Assembly TRB Non-Insulated Bulk Head
MSA00235-12N 3-Lug Cable Jack to Jack MIL-STD-1553 .242" O.D. -30C +80C
78 Ohm Twinaxial Shielded twisted pair 1'

MSA00233-12N MSA00235-12N Custom connectorization and configuration options available.
