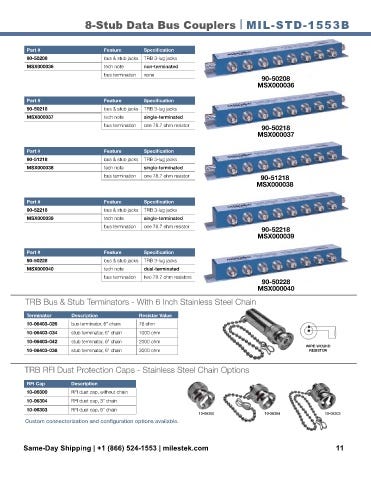

8-Stub Data Bus Couplers MIL-STD-1553B

Part # Feature Specification
90-50208 bus & stub jacks TRB 3-lug jacks
MSX000036 tech note non-terminated
bus termination none
90-50208
MSX000036

Part # Feature Specification
90-50218 bus & stub jacks TRB 3-lug jacks
MSX000037 tech note single-terminated
bus termination one 78.7 ohm resistor 90-50218
MSX000037

Part # Feature Specification
90-51218 bus & stub jacks TRB 3-lug jacks
MSX000038 tech note single-terminated
bus termination one 78.7 ohm resistor 90-51218
MSX000038

Part # Feature Specification
C
90-52218 bus & stub jacks TRB 3-lug jacks
M
MSX000039 tech note single-terminated
Y
bus termination one 78.7 ohm resistor
90-52218
CM
MSX000039
MY
CY Part # Feature Specification
CMY 90-50228 bus & stub jacks TRB 3-lug jacks
K MSX000040 tech note dual-terminated
bus termination two 78.7 ohm resistors
90-50228
MSX000040

TRB Bus & Stub Terminators - With 6 Inch Stainless Steel Chain

Terminator Description Resistor Value
10-06403-026 bus terminator, 6" chain 78 ohm
10-06403-034 stub terminator, 6" chain 1000 ohm
10-06403-042 stub terminator, 6" chain 2000 ohm
WIRE-WOUND
10-06403-038 stub terminator, 6" chain 3000 ohm RESISTOR

TRB RFI Dust Protection Caps - Stainless Steel Chain Options

RFI Cap Description
10-06300 RFI dust cap, without chain
10-06304 RFI dust cap, 3" chain
10-06303 RFI dust cap, 6" chain
10-06300 10-06304 10-06303
Custom connectorization and configuration options available.
