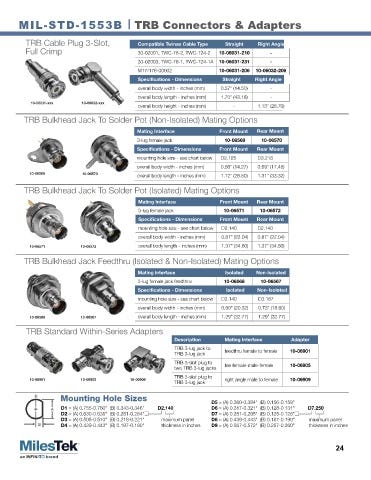

MIL-STD-1553B | TRB Connectors & Adapters

TRB Cable Plug 3-Slot, Compatible Twinax Cable Type Straight Right Angle
Full Crimp 30-02001, TWC-78-2, TWC-124-2 10-06031-210 -
30-02003, TWC-78-1, TWC-124-1A 10-06031-231 -
M17/176-00002 10-06031-206 10-06032-206
Specifications - Dimensions Straight Right Angle
overall body width - inches (mm) 0.57" (14.50) -
overall body length - inches (mm) 1.70" (43.18) -
10-06031-xxx 10-06032-xxx
overall body height - inches (mm) - 1.13" (28.70)
TRB Bulkhead Jack To Solder Pot (Non-Isolated) Mating Options

Mating Interface Front Mount Rear Mount
3-lug female jack 10-06569 10-06570
Specifications - Dimensions Front Mount Rear Mount
mounting hole size - see chart below D2.125 D3.218
overall body width - inches (mm) 0.56" (14.27) 0.69" (17.45)
10-06569 10-06570 overall body length - inches (mm) 1.12" (28.50) 1.31" (33.32)

TRB Bulkhead Jack To Solder Pot (Isolated) Mating Options

Mating Interface Front Mount Rear Mount
C
3-lug female jack 10-06571 10-06572
M
Specifications - Dimensions Front Mount Rear Mount
Y
mounting hole size - see chart below D2.140 D2.140
CM
overall body width - inches (mm) 0.87" (22.04) 0.87" (22.04)
MY
10-06571 10-06572 overall body length - inches (mm) 1.37" (34.80) 1.37" (34.80)
CY
TRB Bulkhead Jack Feedthru (Isolated & Non-Isolated) Mating Options
CMY
K
Mating interface Isolated Non-isolated
3-lug female jack feedthru 10-06568 10-06567
Specifications - Dimensions Isolated Non-Isolated
mounting hole size - see chart below D2.140 D3.187
overall body width - inches (mm) 0.80" (20.32) 0.73" (18.60)
10-06568 10-06567 overall body length - inches (mm) 1.29" (32.77) 1.29" (32.77)
TRB Standard Within-Series Adapters
Description Mating Interface Adapter
TRB 3-lug jack to feedthru female to female 10-06901
TRB 3-lug jack
TRB 3-slot plug to tee female-male-female 10-06905
two TRB 3-lug jacks
TRB 3-slot plug to
10-06901 10-06905 10-06909 right angle male to female 10-06909
TRB 3-lug jack
Mounting Hole Sizes D5 = (A) 0.380-0.384" (B) 0.156-0.159"
D1 = (A) 0.755-0.760" (B) 0.343-0.346" D2.140 D6 = (A) 0.317-0.321" (B) 0.128-0.131" D7.250
D2 = (A) 0.630-0.635" (B) 0.281-0.284" D7 = (A) 0.281-0.285" (B) 0.125-0.128"
D3 = (A) 0.505-0.510" (B) 0.218-0.221" maximum panel D8 = (A) 0.439-0.443" (B) 0.187-0.190" maximum panel
D4 = (A) 0.439-0.443" (B) 0.187-0.190" thickness in inches D9 = (A) 0.567-0.572" (B) 0.257-0.260" thickness in inches

24
