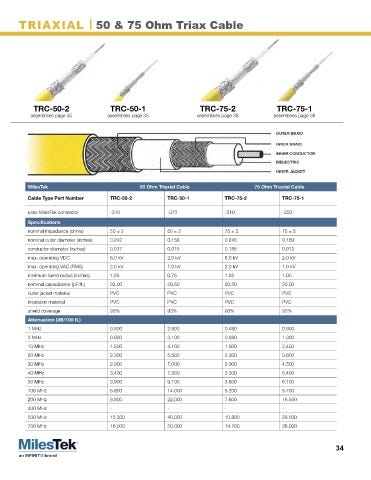

TRIAXIAL | 50 & 75 Ohm Triax Cable

TRC-50-2 TRC-50-1 TRC-75-2 TRC-75-1
assemblies page 35 assemblies page 35 assemblies page 38 assemblies page 38

MilesTek 50 Ohm Triaxial Cable 75 Ohm Triaxial Cable

Cable Type Part Number TRC-50-2 TRC-50-1 TRC-75-2 TRC-75-1
C
uses MilesTek connector -310 -370 -310 -350
M
Specifications
Y
nominal impedance (ohms) 50 ± 2 50 ± 2 75 ± 5 75 ± 5
CM
nominal outer diameter (inches) 0.242 0.156 0.245 0.189
MY
conductor diameter (inches) 0.037 0.015 0.185 0.012
CY
max. operating VDC 6.0 kV 2.0 kV 6.0 kV 2.0 kV
CMY
max. operating VAC (RMS) 2.0 kV 1.0 kV 2.0 kV 1.0 kV
K
minimum bend radius (inches) 1.25 0.75 1.25 1.00
nominal capacitance (pF/ft.) 32.00 29.50 20.50 20.00
outer jacket material PVC PVC PVC PVC
insulation material PVC PVC PVC PVC
shield coverage 93% 93% 93% 93%
Attenuation (dB/100 ft.)
1 MHz 0.500 2.800 0.480 0.900
3 MHz 0.800 3.100 0.880 1.300
10 MHz 1.500 4.100 1.500 2.400
20 MHz 2.300 5.500 2.300 3.600
30 MHz 2.900 7.000 2.900 4.500
40 MHz 3.400 7.500 3.300 5.400
50 MHz 3.900 9.100 3.600 6.100
100 MHz 5.800 14.000 5.200 9.700
200 MHz 8.800 22.000 7.600 16.500
400 MHz - - - -
500 MHz 15.300 40.000 10.800 28.500
700 MHz 18.000 50.000 14.700 36.000
