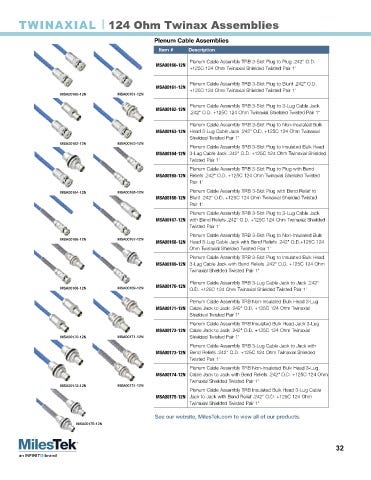

Page 34 - MT Product Catalog

2021_MT_Catalog_VF5.pdf 34 6/15/21 4:51 PM

|
TWINAXIAL 124 Ohm Twinax Assemblies

Plenum Cable Assemblies
Item # Description
Plenum Cable Assembly TRB 3-Slot Plug to Plug .242" O.D.
MSA00160-12N
+125C 124 Ohm Twinaxial Shielded Twisted Pair 1'

Plenum Cable Assembly TRB 3-Slot Plug to Blunt .242" O.D.
MSA00161-12N
+125C 124 Ohm Twinaxial Shielded Twisted Pair 1'
MSA00160-12N MSA00161-12N
Plenum Cable Assembly TRB 3-Slot Plug to 3-Lug Cable Jack
MSA00162-12N
.242" O.D. +125C 124 Ohm Twinaxial Shielded Twisted Pair 1'
Plenum Cable Assembly TRB 3-Slot Plug to Non-Insulated Bulk
MSA00163-12N Head 3-Lug Cable Jack .242" O.D. +125C 124 Ohm Twinaxial
Shielded Twisted Pair 1'
MSA00162-12N MSA00163-12N
Plenum Cable Assembly TRB 3-Slot Plug to Insulated Bulk Head
MSA00164-12N 3-Lug Cable Jack .242" O.D. +125C 124 Ohm Twinaxial Shielded
Twisted Pair 1'
Plenum Cable Assembly TRB 3-Slot Plug to Plug with Bend
MSA00165-12N Reliefs .242" O.D. +125C 124 Ohm Twinaxial Shielded Twisted
Pair 1'

MSA00164-12N MSA00165-12N Plenum Cable Assembly TRB 3-Slot Plug with Bend Relief to
MSA00166-12N Blunt .242" O.D. +125C 124 Ohm Twinaxial Shielded Twisted
Pair 1'
C
Plenum Cable Assembly TRB 3-Slot Plug to 3-Lug Cable Jack
M
MSA00167-12N with Bend Reliefs .242" O.D. +125C 124 Ohm Twinaxial Shielded
Y Twisted Pair 1'
CM Plenum Cable Assembly TRB 3-Slot Plug to Non-Insulated Bulk
MSA00166-12N MSA00167-12N
MY MSA00168-12N Head 3-Lug Cable Jack with Bend Reliefs .242" O.D.+125C 124
Ohm Twinaxial Shielded Twisted Pair 1'
CY
Plenum Cable Assembly TRB 3-Slot Plug to Insulated Bulk Head
CMY
MSA00169-12N 3-Lug Cable Jack with Bend Reliefs .242" O.D. +125C 124 Ohm
K Twinaxial Shielded Twisted Pair 1'
Plenum Cable Assembly TRB 3-Lug Cable Jack to Jack .242"
MSA00168-12N MSA00169-12N MSA00170-12N O.D. +125C 124 Ohm Twinaxial Shielded Twisted Pair 1'
Plenum Cable Assembly TRB Non-Insulated Bulk Head 3-Lug
MSA00171-12N Cable Jack to Jack .242" O.D. +125C 124 Ohm Twinaxial
Shielded Twisted Pair 1'
Plenum Cable Assembly TRB Insulated Bulk Head Jack 3-Lug
MSA00172-12N Cable Jack to Jack .242" O.D. +125C 124 Ohm Twinaxial
MSA00170-12N MSA00171-12N Shielded Twisted Pair 1'
Plenum Cable Assembly TRB 3-Lug Cable Jack to Jack with
MSA00173-12N Bend Reliefs .242" O.D. +125C 124 Ohm Twinaxial Shielded
Twisted Pair 1'
Plenum Cable Assembly TRB Non-Insulated Bulk Head 3-Lug
MSA00174-12N Cable Jack to Jack with Bend Reliefs .242" O.D. +125C 124 Ohm
Twinaxial Shielded Twisted Pair 1'
MSA00172-12N MSA00174-12N
Plenum Cable Assembly TRB Insulated Bulk Head 3-Lug Cable
MSA00175-12N Jack to Jack with Bend Relief .242" O.D. +125C 124 Ohm
Twinaxial Shielded Twisted Pair 1'

See our website, MilesTek.com to view all of our products.
MSA00175-12N
