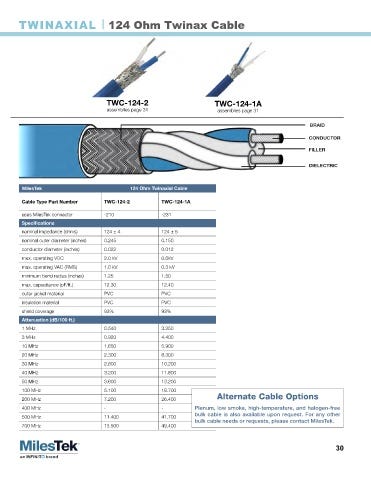

TWINAXIAL 124 Ohm Twinax Cable

TWC-124-2 TWC-124-1A
assemblies page 31 assemblies page 31

MilesTek 124 Ohm Twinaxial Cable
Cable Type Part Number TWC-124-2 TWC-124-1A
C
M uses MilesTek connector -210 -231
Specifications
Y
nominal impedance (ohms) 124 ± 4 124 ± 5
CM
nominal outer diameter (inches) 0.245 0.150
MY
conductor diameter (inches) 0.022 0.012
CY
max. operating VDC 2.0 kV 0.6kV
CMY
max. operating VAC (RMS) 1.0 kV 0.3 kV
K
minimum bend radius (inches) 1.25 1.50
max. capacitance (pF/ft.) 12.30 12.40
outer jacket material PVC PVC
insulation material PVC PVC
shield coverage 93% 93%
Attenuation (dB/100 ft.)
1 MHz 0.540 3.250
3 MHz 0.920 4.400
10 MHz 1.650 5.900
20 MHz 2.300 8.300
30 MHz 2.800 10.200
40 MHz 3.200 11.800
50 MHz 3.600 13.200
100 MHz 5.100 18.700
200 MHz 7.200 26.400 Alternate Cable Options
400 MHz - - Plenum, low smoke, high-temperature, and halogen-free
bulk cable is also available upon request. For any other
500 MHz 11.400 41.700
bulk cable needs or requests, please contact MilesTek.
700 MHz 13.500 49.400
