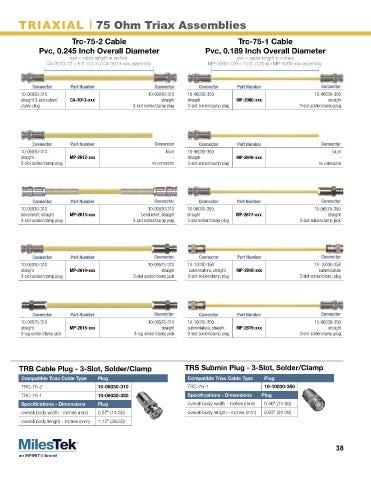

TRIAXIAL | 75 Ohm Triax Assemblies LSZH Cable Assemblies/Connectors D-SUBMINIATURE

Trc-75-2 Cable Trc-75-1 Cable
Pvc, 0.245 Inch Overall Diameter Pvc, 0.189 Inch Overall Diameter
xxx = cable length in inches xxx = cable length in inches
CA-3013-72 = 6 ft. (72 in.) CA-3013-xxx assembly MP-3000-120 = 10 ft. (120 in.) MP-3000-xxx assembly

Connector Part Number Connector Connector Part Number Connector
10-06030-310 10-06030-310 10-06030-350 10-06030-350
straight 3-slot solder/ CA-3013-xxx straight straight MP-3000-xxx straight
clamp plug 3-slot solder/clamp plug 3-slot solder/clamp plug 3-slot solder/clamp plug

Connector Part Number Connector Connector Part Number Connector
10-06030-310 blunt 10-06030-350 blunt
straight MP-2612-xxx - straight MP-2616-xxx -
3-slot solder/clamp plug no connector 3-slot solder/clamp plug no connector

Connector Part Number Connector Connector Part Number Connector
C
10-06030-310 10-06030-310 10-06030-350 10-06575-350
M bend relief, straight MP-2613-xxx bend relief, straight straight MP-2617-xxx straight
3-slot solder/clamp plug 3-slot solder/clamp plug 3-slot solder/clamp plug 3-slot solder/clamp jack
Y
CM
MY
CY
Connector Part Number Connector Connector Part Number Connector
CMY
10-06030-310 10-06575-310 10-10030-350 10-10030-350
K straight MP-2614-xxx straight subminiature, straight MP-2618-xxx subminiature
3-slot solder/clamp plug 3-slot solder/clamp jack 3-slot solder/clamp plug 3-slot solder/clamp plug

Connector Part Number Connector Connector Part Number Connector
10-06575-310 10-06575-310 10-10030-350 10-06030-350
straight MP-2615-xxx straight subminiature, straight MP-2619-xxx straight
3-lug solder/clamp jack 3-lug solder/clamp jack 3-slot solder/clamp plug 3-slot solder/clamp plug

TRB Cable Plug - 3-Slot, Solder/Clamp TRS Submin Plug - 3-Slot, Solder/Clamp
Compatible Triax Cable Type Plug Compatible Triax Cable Type Plug
TRC-75-2 10-06030-310 TRC-75-1 10-10030-350
TRC-75-1 10-06030-350 Specifications - Dimensions Plug
Specifications - Dimensions Plug overall body width - inches (mm) 0.46" (11.68)
overall body width - inches (mm) 0.57" (14.50) overall body length - inches (mm) 0.83" (21.08)
overall body length - inches (mm) 1.12" (28.50)

38
