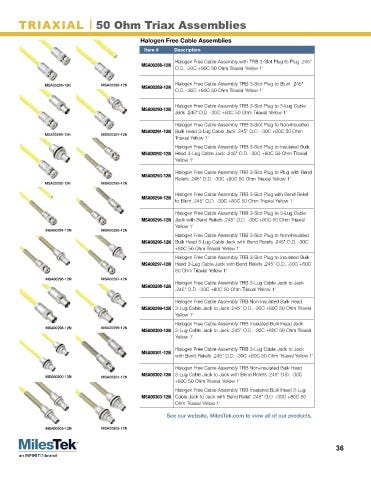

TRIAXIAL | 50 Ohm Triax Assemblies

Halogen Free Cable Assemblies
Item # Description
Halogen Free Cable Assembly with TRB 3-Slot Plug to Plug .245"
MSA00288-12N
O.D. -30C +80C 50 Ohm Triaxial Yellow 1'

MSA00288-12N MSA00289-12N MSA00289-12N Halogen Free Cable Assembly TRB 3-Slot Plug to Blunt .245"
O.D. -30C +80C 50 Ohm Triaxial Yellow 1'

Halogen Free Cable Assembly TRB 3-Slot Plug to 3-Lug Cable
MSA00290-12N
Jack .245" O.D. -30C +80C 50 Ohm Triaxial Yellow 1'
Halogen Free Cable Assembly TRB 3-Slot Plug to Non-Insulated
MSA00291-12N Bulk Head 3-Lug Cable Jack .245" O.D. -30C +80C 50 Ohm
MSA00290-12N MSA00291-12N
Triaxial Yellow 1'
Halogen Free Cable Assembly TRB 3-Slot Plug to Insulated Bulk
MSA00292-12N Head 3-Lug Cable Jack .245" O.D. -30C +80C 50 Ohm Triaxial
Yellow 1'
Halogen Free Cable Assembly TRB 3-Slot Plug to Plug with Bend
MSA00293-12N
Reliefs .245" O.D. -30C +80C 50 Ohm Triaxial Yellow 1'
MSA00292-12N MSA00293-12N
Halogen Free Cable Assembly TRB 3-Slot Plug with Bend Relief
MSA00294-12N
to Blunt .245" O.D. -30C +80C 50 Ohm Triaxial Yellow 1'
C
Halogen Free Cable Assembly TRB 3-Slot Plug to 3-Lug Cable
M
MSA00295-12N Jack with Bend Reliefs .245" O.D. -30C +80C 50 Ohm Triaxial
Y Yellow 1'
MSA00294-12N MSA00295-12N
CM Halogen Free Cable Assembly TRB 3-Slot Plug to Non-Insulated
MY MSA00296-12N Bulk Head 3-Lug Cable Jack with Bend Reliefs .245" O.D. -30C
+80C 50 Ohm Triaxial Yellow 1'
CY
Halogen Free Cable Assembly TRB 3-Slot Plug to Insulated Bulk
CMY
MSA00297-12N Head 3-Lug Cable Jack with Bend Reliefs .245" O.D. -30C +80C
K 50 Ohm Triaxial Yellow 1'
MSA00296-12N MSA00297-12N Halogen Free Cable Assembly TRB 3-Lug Cable Jack to Jack
MSA00298-12N
.245" O.D. -30C +80C 50 Ohm Triaxial Yellow 1'
Halogen Free Cable Assembly TRB Non-Insulated Bulk Head
MSA00299-12N 3-Lug Cable Jack to Jack .245" O.D. -30C +80C 50 Ohm Triaxial
Yellow 1'
Halogen Free Cable Assembly TRB Insulated Bulk Head Jack
MSA00298-12N MSA00299-12N
MSA00300-12N 3-Lug Cable Jack to Jack .245" O.D. -30C +80C 50 Ohm Triaxial
Yellow 1'
Halogen Free Cable Assembly TRB 3-Lug Cable Jack to Jack
MSA00301-12N
with Bend Reliefs .245" O.D. -30C +80C 50 Ohm Triaxial Yellow 1'
Halogen Free Cable Assembly TRB Non-Insulated Bulk Head
MSA00302-12N 3-Lug Cable Jack to Jack with Bend Reliefs .245" O.D. -30C
MSA00300-12N MSA00301-12N
+80C 50 Ohm Triaxial Yellow 1'
Halogen Free Cable Assembly TRB Insulated Bulk Head 3-Lug
MSA00303-12N Cable Jack to Jack with Bend Relief .245" O.D. -30C +80C 50
Ohm Triaxial Yellow 1'

See our website, MilesTek.com to view all of our products.

MSA00302-12N MSA00303-12N
