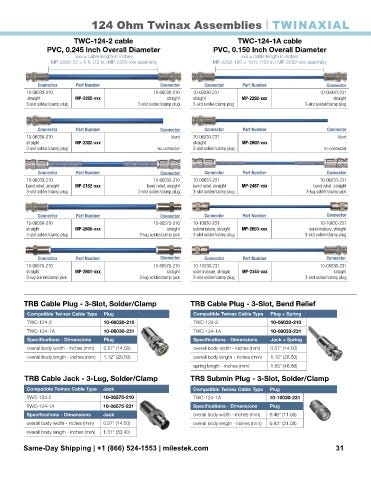

124 Ohm Twinax Assemblies TWINAXIAL

TWC-124-2 cable TWC-124-1A cable
PVC, 0.245 Inch Overall Diameter PVC, 0.150 Inch Overall Diameter
xxx = cable length in inches xxx = cable length in inches
MP-2205-72 = 6 ft. (72 in.) MP-2205-xxx assembly MP-2292-120 = 10 ft. (120 in.) MP-2292-xxx assembly

Connector Part Number Connector Connector Part Number Connector
10-06030-210 10-06030-210 10-06030-231 10-06030-231
straight MP-2205-xxx straight straight MP-2292-xxx straight
3-slot solder/clamp plug 3-slot solder/clamp plug 3-slot solder/clamp plug 3-slot solder/clamp plug

Connector Part Number Connector Connector Part Number Connector
10-06030-210 blunt 10-06030-231 blunt
straight MP-2302-xxx - straight MP-2602-xxx -
3-slot solder/clamp plug no connector 3-slot solder/clamp plug no connector

Connector Part Number Connector Connector Part Number Connector
10-06033-210 10-06033-210 10-06033-231 10-06033-231
bend relief, straight MP-2152-xxx bend relief, straight bend relief, straight MP-2487-xxx bend relief, straight
3-slot solder/clamp plug 3-slot solder/clamp plug 3-slot solder/clamp plug 3-lug solder/clamp jack

C
M Connector Part Number Connector Connector Part Number Connector
10-06030-210 10-06575-210 10-10030-231 10-10030-231
Y
straight MP-2600-xxx straight subminiature, straight MP-2603-xxx subminiature, straight
CM 3-slot solder/clamp plug 3-lug solder/clamp jack 3-slot solder/clamp plug 3-slot solder/clamp plug
MY
CY
Connector Part Number Connector Connector Part Number Connector
CMY
10-06575-210 10-06575-210 10-10030-231 10-06030-231
K
straight MP-2601-xxx straight subminiature, straight MP-2344-xxx straight
3-lug solder/clamp jack 3-lug solder/clamp jack 3-slot solder/clamp plug 3-slot solder/clamp plug

TRB Cable Plug - 3-Slot, Solder/Clamp TRB Cable Plug - 3-Slot, Bend Relief

Compatible Twinax Cable Type Plug Compatible Twinax Cable Type Plug + Spring
TWC-124-2 10-06030-210 TWC-124-2 10-06033-210
TWC-124-1A 10-06030-231 TWC-124-1A 10-06033-231
Specifications - Dimensions Plug Specifications - Dimensions Jack + Spring
overall body width - inches (mm) 0.57" (14.50) overall body width - inches (mm) 0.57" (14.50)
overall body length - inches (mm) 1.12" (28.50) overall body length - inches (mm) 1.12" (28.50)
spring length - inches (mm) 1.85" (46.88)
TRB Cable Jack - 3-Lug, Solder/Clamp TRS Submin Plug - 3-Slot, Solder/Clamp
Compatible Twinax Cable Type Jack Compatible Twinax Cable Type Plug
TWC-124-2 10-06575-210 TWC-124-1A 10-10030-231
TWC-124-1A 10-06575-231 Specifications - Dimensions Plug
Specifications - Dimensions Jack overall body width - inches (mm) 0.46" (11.68)
overall body width - inches (mm) 0.57" (14.50) overall body length - inches (mm) 0.83" (21.08)
overall body length - inches (mm) 1.31" (33.40)
