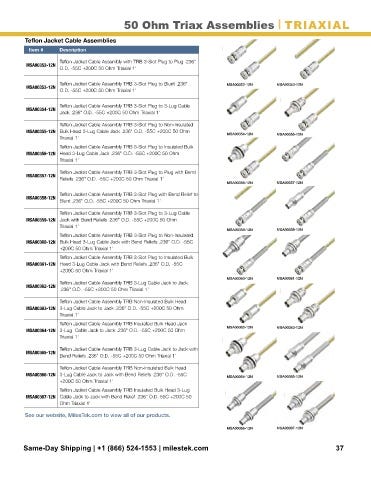

50 Ohm Triax Assemblies TRIAXIAL

Teflon Jacket Cable Assemblies
Item # Description
Teflon Jacket Cable Assembly with TRB 3-Slot Plug to Plug .236"
MSA00352-12N
O.D. -55C +200C 50 Ohm Triaxial 1'

Teflon Jacket Cable Assembly TRB 3-Slot Plug to Blunt .236" MSA00352-12N MSA00353-12N
MSA00353-12N
O.D. -55C +200C 50 Ohm Triaxial 1'

Teflon Jacket Cable Assembly TRB 3-Slot Plug to 3-Lug Cable
MSA00354-12N
Jack .236" O.D. -55C +200C 50 Ohm Triaxial 1'
Teflon Jacket Cable Assembly TRB 3-Slot Plug to Non-Insulated
MSA00355-12N Bulk Head 3-Lug Cable Jack .236" O.D. -55C +200C 50 Ohm MSA00354-12N MSA00355-12N
Triaxial 1'
Teflon Jacket Cable Assembly TRB 3-Slot Plug to Insulated Bulk
MSA00356-12N Head 3-Lug Cable Jack .236" O.D. -55C +200C 50 Ohm
Triaxial 1'
Teflon Jacket Cable Assembly TRB 3-Slot Plug to Plug with Bend
MSA00357-12N
Reliefs .236" O.D. -55C +200C 50 Ohm Triaxial 1'
MSA00356-12N MSA00357-12N
Teflon Jacket Cable Assembly TRB 3-Slot Plug with Bend Relief to
MSA00358-12N
Blunt .236" O.D. -55C +200C 50 Ohm Triaxial 1'
C
Teflon Jacket Cable Assembly TRB 3-Slot Plug to 3-Lug Cable
M
MSA00359-12N Jack with Bend Reliefs .236" O.D. -55C +200C 50 Ohm
Y Triaxial 1'
MSA00358-12N MSA00359-12N
CM Teflon Jacket Cable Assembly TRB 3-Slot Plug to Non-Insulated
MY MSA00360-12N Bulk Head 3-Lug Cable Jack with Bend Reliefs .236" O.D. -55C
+200C 50 Ohm Triaxial 1'
CY
Teflon Jacket Cable Assembly TRB 3-Slot Plug to Insulated Bulk
CMY
MSA00361-12N Head 3-Lug Cable Jack with Bend Reliefs .236" O.D. -55C
K +200C 50 Ohm Triaxial 1'
MSA00360-12N MSA00361-12N
Teflon Jacket Cable Assembly TRB 3-Lug Cable Jack to Jack
MSA00362-12N
.236" O.D. -55C +200C 50 Ohm Triaxial 1'
Teflon Jacket Cable Assembly TRB Non-Insulated Bulk Head
MSA00363-12N 3-Lug Cable Jack to Jack .236" O.D. -55C +200C 50 Ohm
Triaxial 1'
Teflon Jacket Cable Assembly TRB Insulated Bulk Head Jack
MSA00364-12N 3-Lug Cable Jack to Jack .236" O.D. -55C +200C 50 Ohm MSA00362-12N MSA00363-12N
Triaxial 1'
Teflon Jacket Cable Assembly TRB 3-Lug Cable Jack to Jack with
MSA00365-12N
Bend Reliefs .236" O.D. -55C +200C 50 Ohm Triaxial 1'
Teflon Jacket Cable Assembly TRB Non-Insulated Bulk Head
MSA00366-12N 3-Lug Cable Jack to Jack with Bend Reliefs .236" O.D. -55C MSA00364-12N MSA00365-12N
+200C 50 Ohm Triaxial 1'
Teflon Jacket Cable Assembly TRB Insulated Bulk Head 3-Lug
MSA00367-12N Cable Jack to Jack with Bend Relief .236" O.D. 55C +200C 50
Ohm Triaxial 1'

See our website, MilesTek.com to view all of our products.

MSA00366-12N MSA00367-12N
