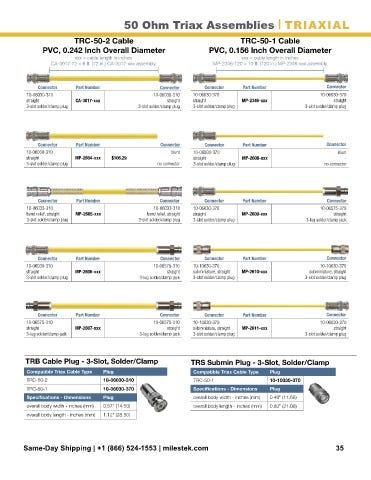

50 Ohm Triax Assemblies TRIAXIAL

TRC-50-2 Cable TRC-50-1 Cable
PVC, 0.242 Inch Overall Diameter PVC, 0.156 Inch Overall Diameter
xxx = cable length in inches xxx = cable length in inches
CA-3017-72 = 6 ft. (72 in.) CA-3017-xxx assembly MP-2346-120 = 10 ft. (120 in.) MP-2346-xxx assembly

Connector Part Number Connector Connector Part Number Connector
10-06030-310 10-06030-310 10-06030-370 10-06030-370
straight CA-3017-xxx straight straight MP-2346-xxx straight
3-slot solder/clamp plug 3-slot solder/clamp plug 3-slot solder/clamp plug 3-slot solder/clamp plug

Connector Part Number Connector Connector Part Number Connector
10-06030-310 blunt 10-06030-370 blunt
straight MP-2604-xxx $106.29 - straight MP-2608-xxx -
3-slot solder/clamp plug no connector 3-slot solder/clamp plug no connector

Connector Part Number Connector Connector Part Number Connector
C 10-06033-310 10-06033-310 10-06030-370 10-06575-370
bend relief, straight MP-2605-xxx bend relief, straight straight MP-2609-xxx straight
M
3-slot solder/clamp plug 3-slot solder/clamp plug 3-slot solder/clamp plug 3-lug solder/clamp jack
Y
CM
MY
CY
Connector Part Number Connector Connector Part Number Connector
CMY
10-06030-310 10-06575-310 10-10030-370 10-10030-370
K
straight MP-2606-xxx straight subminiature, straight MP-2610-xxx subminiature, straight
3-slot solder/clamp plug 3-lug solder/clamp jack 3-slot solder/clamp plug 3-slot solder/clamp plug

Connector Part Number Connector Connector Part Number Connector
10-06575-310 10-06575-310 10-10030-370 10-06030-370
straight MP-2607-xxx straight subminiature, straight MP-2611-xxx straight
3-lug solder/clamp jack 3-lug solder/clamp jack 3-slot solder/clamp plug 3-slot solder/clamp plug

TRB Cable Plug - 3-Slot, Solder/Clamp TRS Submin Plug - 3-Slot, Solder/Clamp

Compatible Triax Cable Type Plug Compatible Triax Cable Type Plug
TRC-50-2 10-06030-310 TRC-50-1 10-10030-370
TRC-50-1 10-06030-370 Specifications - Dimensions Plug
Specifications - Dimensions Plug overall body width - inches (mm) 0.46" (11.68)
overall body width - inches (mm) 0.57" (14.50) overall body length - inches (mm) 0.83" (21.08)
overall body length - inches (mm) 1.12" (28.50)
