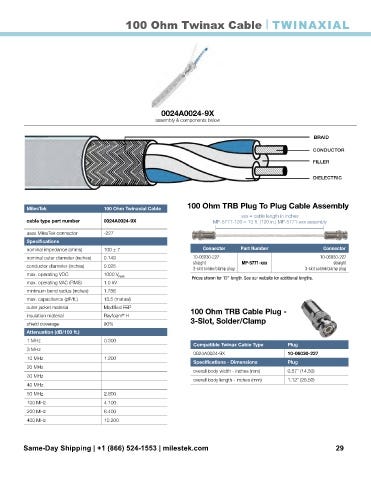

100 Ohm Twinax Cable TWINAXIAL

0024A0024-9X
assembly & components below

100 Ohm TRB Plug To Plug Cable Assembly
C
MilesTek 100 Ohm Twinaxial Cable
M xxx = cable length in inches
cable type part number 0024A0024-9X MP-5771-120 = 10 ft. (120 in.) MP-5771-xxx assembly
Y
CM uses MilesTek connector -227
Specifications
MY
nominal impedance (ohms) 100 ± 7 Connector Part Number Connector
CY
nominal outer diameter (inches) 0.149 10-06030-227 10-06030-227
CMY straight MP-5771-xxx straight
conductor diameter (inches) 0.025
K 3-slot solder/clamp plug 3-slot solder/clamp plug
max. operating VDC 1000 V RMS Prices shown for 12" length. See our website for additional lengths.
max. operating VAC (RMS) 1.0 kV
minimum bend radius (inches) 1.788
max. capacitance (pF/ft.) 13.5 (mutual)
outer jacket material Modified FEP 100 Ohm TRB Cable Plug -
®
insulation material Rayfoam H
shield coverage 90% 3-Slot, Solder/Clamp
Attenuation (dB/100 ft.)
1 MHz 0.300
Compatible Twinax Cable Type Plug
3 MHz
0024A0024-9X 10-06030-227
10 MHz 1.200
Specifications - Dimensions Plug
20 MHz
overall body width - inches (mm) 0.57" (14.50)
30 MHz
overall body length - inches (mm) 1.12" (28.50)
40 MHz
50 MHz 2.800
100 MHz 4.100
200 MHz 6.400
400 MHz 10.200

Same-Day Shipping | +1 (866) 524-1553 | milestek.com 29
