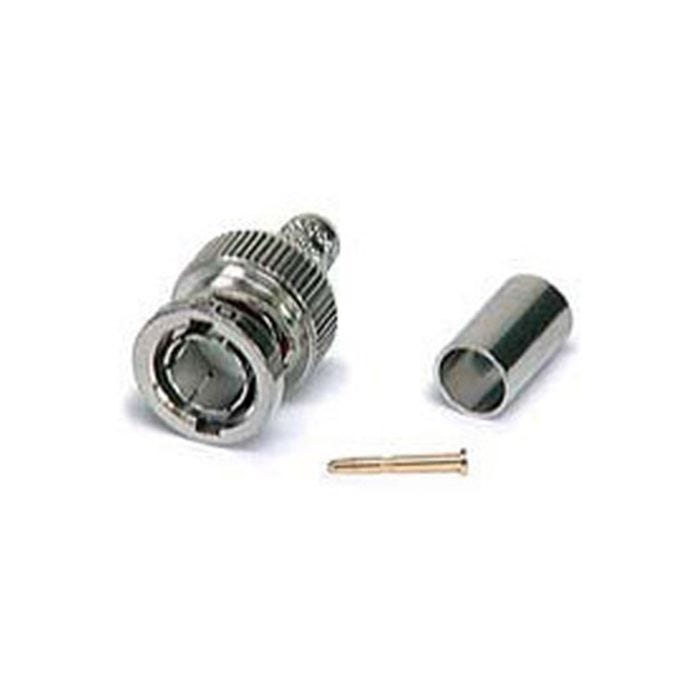

BNC CRIMP PLUG 75 OHM RG59 23 AWG 8241
$5.99
Out of stock
Part Number
10-03001-202
- Buy 10 for $5.63 each
- Buy 25 for $5.27 each
- Buy 100 for $4.91 each
- Buy 250 for $4.55 each
- Buy 500 for $4.19 each
Product is no longer available
This product has been discontinued and has run out of stock. We apologize for the inconvenience.
Replacement Part:
10-03001-204
BNC CRIMP PLUG 75 OHM RG59 23 AWG 8241 - PART# 10-03001-202
FEATURES:
ELECTRICAL SPECIFICATIONS:
FEATURES:
- True 75 Ohm BNC Plugs
- Cable: 8241, RG59 23 AWG
- Crimp Sleeve: Hex 0.255
- HDTV and Serial Digital Video Applications
- Diamond knurled for maximum pull strength when crimped onto the cable
- Center pin 30 " gold plating
- Teflon securely captivates pin
- Machined, nickel-plated body
ELECTRICAL SPECIFICATIONS:
- Impedence: 75 Ohm
- Frequency Range: Tested to 3 GHz
- Working Voltage: 500 VRMS
- Dielectric Withstanding Voltage: 1500 VRMS
- VSWR: 1.05 + 0.1f (GHz) DC to 1 GHz
- Contact Resistance: Center Contact 1.5 milliohms, Outer Contact 1.0 milliohms
- Insulation Resistance: 5000 megohms (min.)
