BNC CRIMP PLUG 75 OHM 1694A
$5.19
Availability: 386 In Stock
Part Number
10-03001-237
- Buy 10 for $4.88 each
- Buy 25 for $4.57 each
- Buy 100 for $4.26 each
- Buy 250 for $3.94 each
- Buy 500 for $3.63 each

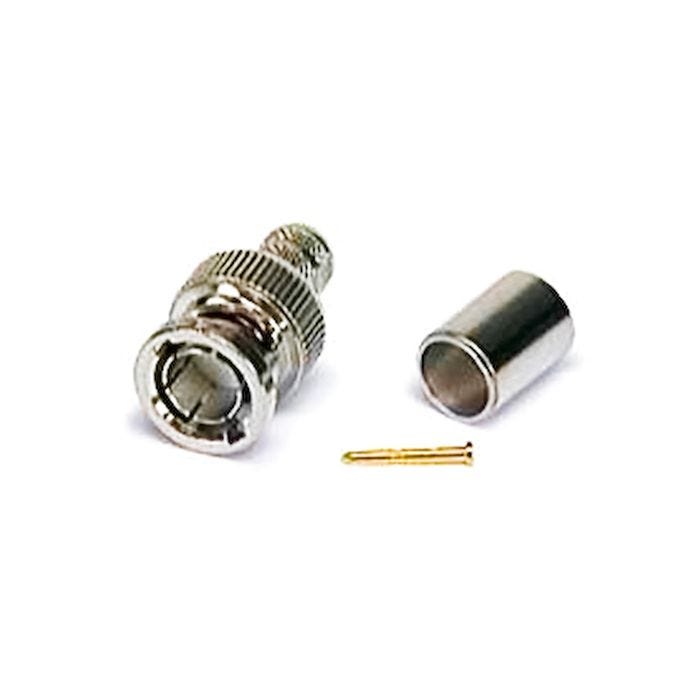

BNC CRIMP PLUG 75 OHM 1694A - PART# 10-03001-237
MilesTek also designs and builds customized cable assemblies for your convenience. Please contact us at 800-524-7444 for estimates. Revised 9/09
- FEATURES:
- True 75 Ohm BNC Plugs
- Cable: 1694A, 1695A, 30 01031, VSD 2001
- Crimp Sleeve: Hex 0.324
- HDTV and Serial Digital Video Applications
- Diamond knurled for maximum pull strength when crimped onto the cable
- Center pin 30 " gold plating
- Teflon securely captivates pin
- Machined, nickel-plated body
- ELECTRICAL SPECIFICATIONS:
- Impedence: 75 Ohm
- Frequency Range: Tested to 3 GHz
- Working Voltage: 500 VRMS
- Dielectric Withstanding Voltage: 1500 VRMS
- VSWR: 1.05 + 0.1f (GHz) DC to 1 GHz
- Contact Resistance: Center Contact 1.5 milliohms, Outer Contact 1.0 milliohms
- Insulation Resistance: 5000 megohms (min.)
- Notes:
- Use 75 Ohm pin center crimper 40-15002, Corex Cable Stripper 40-11209, Crimper 40-12101.
- Cable strip dimensions: 0.327" (braid), 0.146" (dielectric), 0.158" (center conductor).
- Component Video Termination Kit 40-50220
