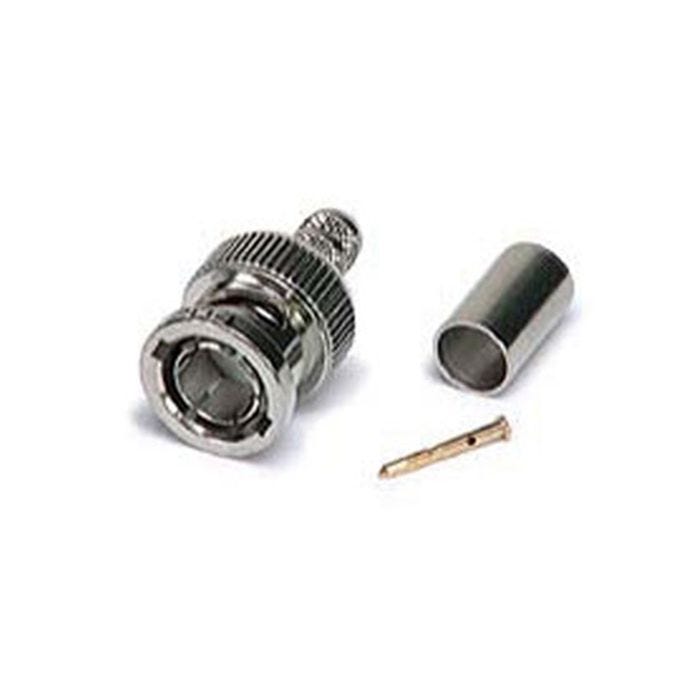

BNC CRIMP PLUG 75 OHM FOR 734A DS3, BELDEN 1505A, GEPCO VPM2000

$4.14
Availability: 1287 In Stock
Part Number
10-03001-204
  • Buy 10 for $3.89 each
  • Buy 25 for $3.64 each
  • Buy 100 for $3.39 each
  • Buy 250 for $3.15 each
  • Buy 500 for $2.90 each
BNC CRIMP PLUG 75 OHM FOR 734A DS3, VPM 2000, BELDEN 1505A RG59 20 AWG -
PART# 10-03001-204


Designed by MilesTek in 1991, this 180 degree straight BNC plug is suitable for both digital video and telco DS3 applications. During installation, the 75 OHM center pin becomes captive when pushed into the teflon dielectric inside the plug's body, preventing the coaxial cable's center conductor from withdrawing from the connector during normal contraction. For larger quantities, please call for volume pricing.
    FEATURES:
  • True 75 Ohm BNC PLugs
  • Cable:734A, VPM 2000, Belden 1505A
  • Crimp sleeve: Hex .255.
  • Telco Central Office DS3
  • Diamond knurled for maximum oull strength when crimped onto the cable
  • Diamond knurled for maximum pull strength when crimped onto the cable
  • Center pin 30 " gold plating
  • Teflon securely captivates pin
  • Machined, nickel-plated body

    ELECTRICAL SPECIFICATIONS:
  • Impedence: 75 Ohm
  • Frequency Range: Tested to 3 GHz
  • Working Voltage: 500 VRMS
  • Dielectric Withstanding Voltage: 1500 VRMS
  • VSWR: 1.05 + 0.1f (GHz) DC to 1 GHz
  • Contact Resistance: Center Contact 1.5 milliohms, Outer Contact 1.0 milliohms
  • Insulation Resistance: 5000 megohms (min.)
