Twinaxial TRB 3-slot Cable Plug with Bend Relief (0024A0024-9X)

Availability: 640 In Stock
Part Number

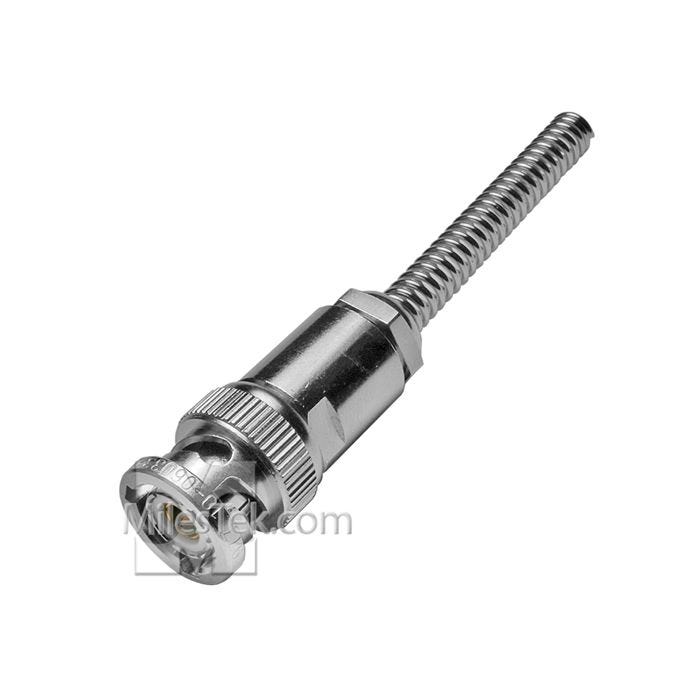

This standard TRB plug is equipped with a bend-relief spring. The spring allows cable to gently hang at a wider angle, and reduces stress on the assembly. This plug features the standard bayonet design, which acts to lock connection between both center pin/socket and intermediate cylindrical contacts. This design can withstand severe shocks and vibrations. The -227 model is designed to use 0024A0024-9X twinax cable in 100 ohm cable assemblies. It is RoHS compliant.

Tech Notes - The center contact is high (positive) connected to the twinax blue wire and the cylindrical contact is low (negative) connected to the twinax white wire. The connector body is tied to the cable shield.
