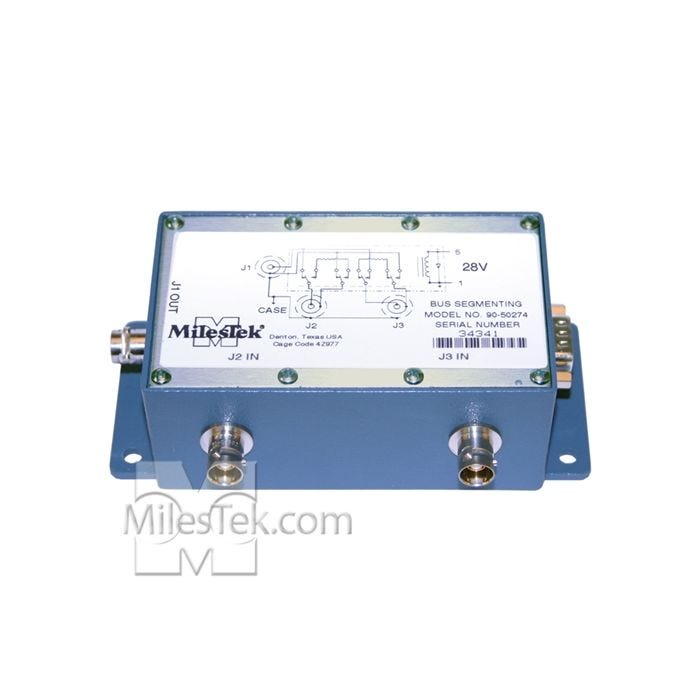

RELAY, BUS SEGMENTING 28 VOLT
$745.00
Out of stock
Part Number
90-50274
Product is no longer available
This product has been discontinued and has run out of stock. We apologize for the inconvenience.
Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.
RELAY, BUS SEGMENTING 28 VOLT - 90-50274
Eliminating the task of manually switching cables, relay devices act as on-off bus switches to connect and disconnect individual remote terminals or entire bus segments to/from a bus network. Reconfiguring bus components is accomplished by simply applying low voltage to the relay devices D-subminiature connector.
General Specifications:
Insertion Loss: .25 dB
Return Loss: -20dB
Isoloation Between Ports: 60dbMin@1MHz / 50dbMin@10MHz
Insulation Withstanding: 500VAC
Control Connector: DB9 Male
Pin1=High(+) Pin5=Low(-)
Bus/Stub Connectors: TRB 3-Lug Jacks
