MIDDLE ATLANTIC WALL MOUNT RACK 7 RS MILESTEK PART 50-70190

$358.02
Availability: In Stock
Part Number
SBX-7

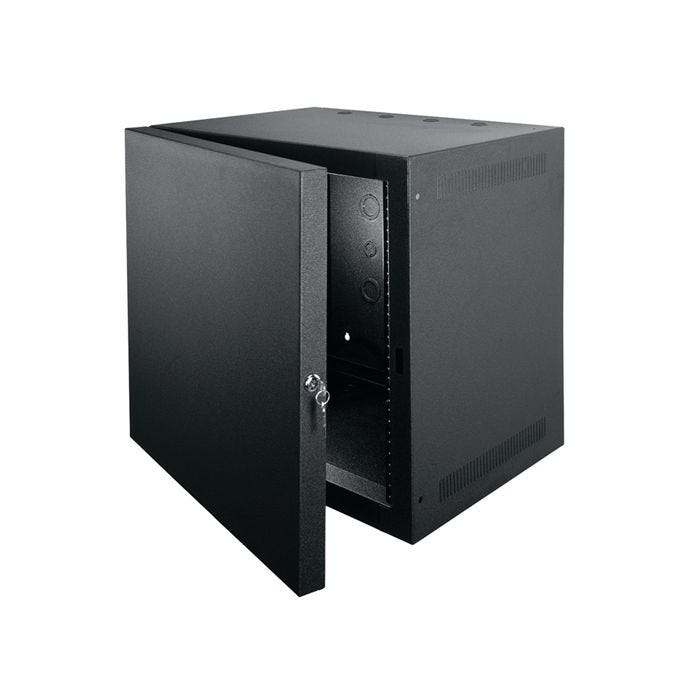

MIDDLE ATLANTIC 7RS VALUE PRICED WALL MOUNT CABINET SBX-7, MILESTEK Part # 50-70190 Economical solution for smaller systems. Fully-welded, 18-gauge steel construction in a low-profile design. Locking front door swings out 180 degrees on a strong hinge. Perforations at the top of each side for cooling. Deep rail-to-door clearance ratio provides flexibility not found in flush-mounted door designs. Other features include a 11-gauge, threaded 10/32" rack rails, large rear knockout for entry of cables, and 1/2"/3/4" electrical knockouts at top, bottom and rear. Black textured powder-coat finish. Measures 17" deep with 14" of useable depth. Two heights available.
    Size and Capacity:
  • Outside Width: 22.25"
  • Outside Depth: 17.0"
  • Outside Height: 15.6"
  • Usable Width: 19"
  • Usable Depth: 14.0"
  • Usable Height: 12.6"
  • Rack Spaces: 10
  • Load Capacity: 100 lbs.
