MIL-STD-1553 Cinch Equivalent Bulkhead Jacks
MilesTek’s 3-lug female isolated and non-isolated bulkhead jacks are designed for MIL-STD-1553 applications and are alternatives to Cinch numbers BJ79-9, BJ79-29, BJ79-47, BJ79-49, BJ74-9, BJ74-29, BJ74-47, BJ74-49, BJ78, BJ73, BJ77, BJ770, BJ76.
Our TRB bulkhead jacks come in a variety of configurations featuring front-mounted, rear-mounted, bayonet coupling, and feedthrough options. They are also RoHS compliant and can be paired with common twinaxial cables.
MilesTek bulkhead jacks are in-stock and available for same-day shipping with no minimum quantity order requirements. MilesTek offers a full selection of bulkhead jacks in both TRB and BNC varieties. Click here to view our full bulkhead jack inventory.
Matches Product Number: BJ79-9
MilesTek 10-06577-210 is a TRB non-isolated bulkhead cable jack that attaches directly to panels (front-mount). The bulkhead jack end will appear on the front of the panel, and mates to TRB plugs using the bayonet coupling design. This model is designed to fit MilesTek’s laboratory-rated 30-02001 twinaxial cable, or Cinch’s TWC-78-2 twinaxial cable. It is RoHS compliant.
View product
Matches Product Number: BJ79-29
MilesTek 10-06577-231 is a TRB bulkhead cable jack that attaches directly to panels (front-mount) and is RoHS compliant. The TRB jack is not insulated (non-isolated) from the panel. The bulkhead jack end will appear on the front of the panel, and mates to TRB plugs using the bayonet coupling design. Th -231 model is designed to fit MilesTek’s laboratory-rated 30-02003 twinaxial cable, or Cinch’s TWC-78-1 twinaxial cable.
View product
Matches Product Number: BJ79-47
MilesTek BJ79-47 is a TRB bulkhead cable jack that attaches directly to panels (front-mount) and is RoHS compliant. The TRB jack is not insulated (non-isolated) from the panel and mates to TRB plugs using the bayonet coupling design. The -206 model is designed to fit high-temperature M17/176-00002 twinxial cables.
View product
Matches Product Number: BJ79-49
MilesTek 10-06577-242 is a TRB 3-lug non-isolated bulkhead cable jack that is front mounted to panels and RoHS compliant. The -242 model is designed to fit MilesTek’s 30-2002 and Cinch’s TWAC-78-1F2 twinaxial cables.
View product
Matches Product Number: BJ74-9
MilesTek 10-06573-210 is a TRB bulkhead cable jack that has a bayonet coupling design that can withstand sever shocks and vibrations. The bulkhead jack is insulated (isolated) and will use an independent signal from the panel’s common signal if present. This model can be paired with MilesTek 30-02001 or Cinch’s TWC-78-2 twinaxial cables. It is RoHS compliant.
View product
Matches Product Number: BJ74-29
MilesTek 10-06573-231 is a TRB bulkhead cable jack that has a bayonet coupling design that can withstand sever shocks and vibrations. The bulkhead jack is insulated (isolated) and will use an independent signal from the panel’s common signal if present. This model can be paired with MilesTek 30-02003 or Cinch’s TWC-78-1 twinaxial cables. It is RoHS compliant.
View product
Matches Product Number: BJ74-47
MilesTek 10-06573-206 is a TRB bulkhead cable jack that has a bayonet coupling design that can withstand sever shocks and vibrations. The bulkhead jack is insulated (isolated) and will use an independent signal from the panel’s common signal if present. This model can be paired standard M17/176-00002 cables. It is RoHS compliant.
View product
Matches Product Number: BJ74-49
MilesTek 10-06573-242 is a TRB bulkhead cable jack that has a bayonet coupling design that can withstand sever shocks and vibrations. The bulkhead jack is insulated (isolated) and will use an independent signal from the panel’s common signal if present. This model can be paired with MilesTek’s 30-02002 and Cinch’s TWAC-78-1F2 twinaxial cables. It is RoHS compliant.
View product
Matches Product Number: BJ78

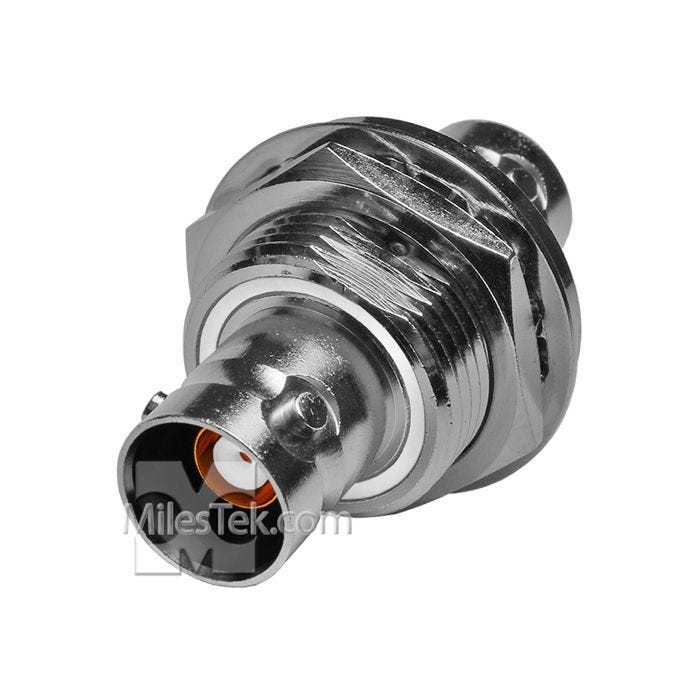

MilesTek 10-06567 is a TRB bulkhead jack that is not insulated (non-isolated) from the panel. Bulkhead jacks are available on both sides of the panel, allowing two separate cable assemblies to be connected by a female-to-female feedthrough. It is RoHS compliant.
View product
Matches Product Number: BJ73
MilesTek 10-06567 is a TRB bulkhead jack that is insulated (isolated) from the panel. It will not be affected by the common signal of the panel and can maintain an individual signal. Bulkhead jacks are available on both sides of the panel, allowing two separate cable assemblies to be connected by a female-to-female feedthrough. It is RoHS compliant.
View product
Matches Product Number: BJ77
MilesTek 10-06569 is a TRB cable jack that is not insulated (non-isolated) from the panel. It will use the common signal of the panel. The bulkhead jack end will appear on the front of the panel, and mates to TRB plugs using the bayonet coupling design. The ground tab provides extra stability. It is RoHS compliant.
View product
Matches Product Number: BJ76

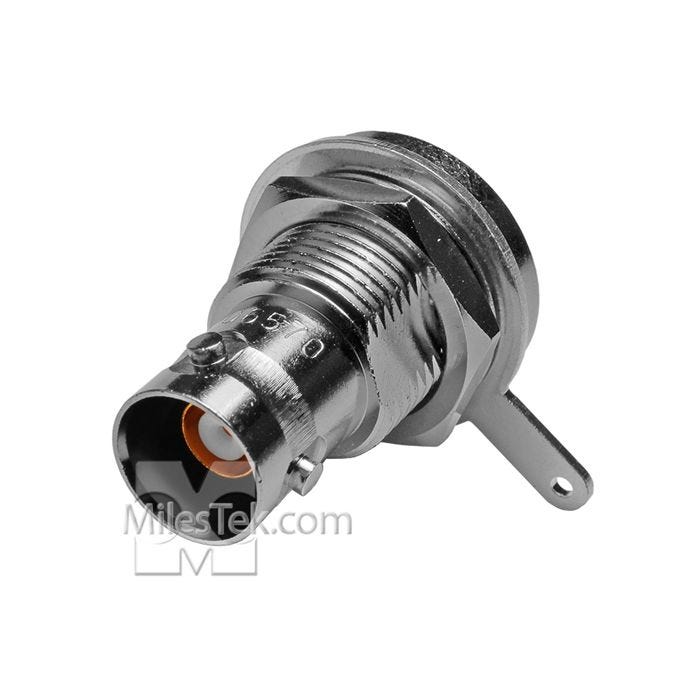

MilesTek 10-06570 is aTRB bulkhead cable jack that is not insulated (non-isolated) from the panel. It will use the common signal of the panel. The bulkhead jack end will appear on the rear of the panel, and mates to TRB plugs using the bayonet coupling design. The ground tab provides extra stability. It is RoHS compliant.
View productGet the Complete Cinch Equivalent Product Guide
For a full list of all products listed by part number, download our Cinch Equivalent Product Guide by clicking the button below.
download product guide
