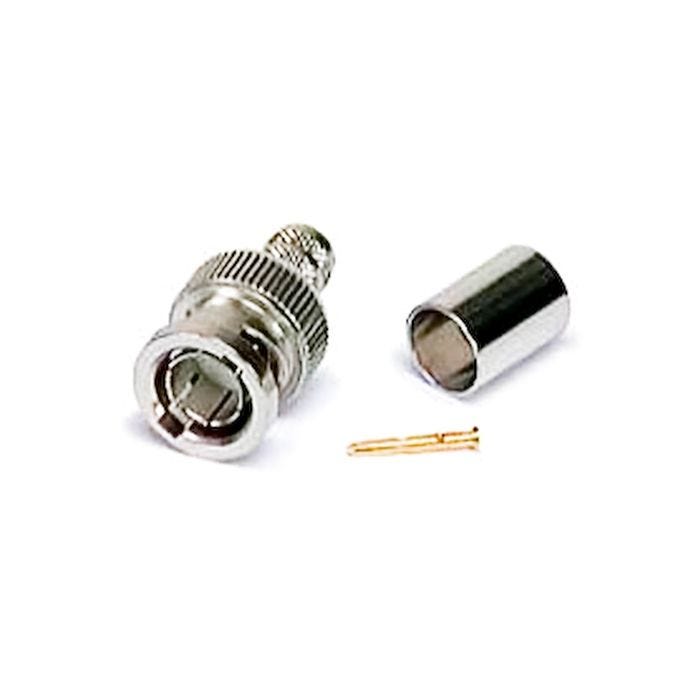

BNC PLUG CRIMP 75 OHM 8281
$5.09
Availability: 168 In Stock
Part Number
10-03001-203
- Buy 10 for $4.78 each
- Buy 25 for $4.48 each
- Buy 100 for $4.17 each
- Buy 250 for $3.87 each
- Buy 500 for $3.56 each
BNC PLUG CRIMP 75 OHM 8281 - PART# 10-03001-203
WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
- FEATURES:
- True 75 Ohm BNC Plugs
- Cable: 8281, 8281F
- Crimp Sleeve: Hex 0.324
- HDTV and Serial Digital Video Applications
- Diamond knurled for maximum pull strength when crimped onto the cable
- Center pin 30 " gold plating
- Teflon securely captivates pin
- Machined, nickel-plated body
- ELECTRICAL SPECIFICATIONS:
- Impedence: 75 Ohm
- Frequency Range: Tested to 3 GHz
- Working Voltage: 500 VRMS
- Dielectric Withstanding Voltage: 1500 VRMS
- VSWR: 1.05 + 0.1f (GHz) DC to 1 GHz
- Contact Resistance: Center Contact 1.5 milliohms, Outer Contact 1.0 milliohms
- Insulation Resistance: 5000 megohms (min.)
- Notes:
- Use 75 Ohm pin center crimper 40-15002, Corex Cable Stripper 40-11209, Crimper 40-12101.
- Cable strip dimensions: 0.327" (braid), 0.146" (dielectric), 0.158" (center conductor).
- Component Video Termination Kit 40-50220
