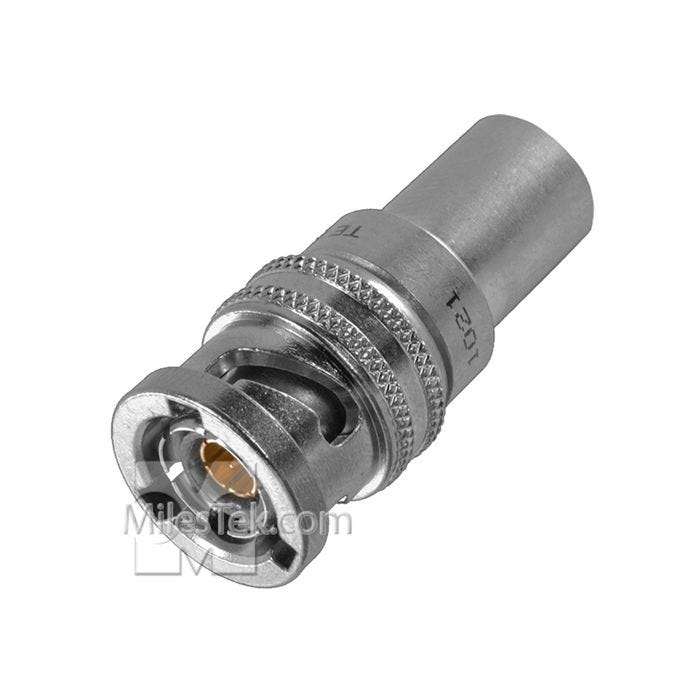

PL75C-201 Trompeter Twinaxial Cable Plug TRB 3-Slot Male Full crimp M17/176-00002
$35.59
Out of stock
Part Number
PL75C-201
Product is no longer available
This product has been discontinued and has run out of stock. We apologize for the inconvenience.
Replacement Part:
10-06031-206
PL75C-201 Trompeter Twinaxial Cable Plug TRB 3-Slot Male Full crimp M17/176-00002
The TRB connector has bayonet coupling design with a centre contact and an intermediate cylindrical contact. The bayonet type can withstand severe shocks and vibrations. They are available in 2, 3 and 4-lug, push-on and threaded styles. They are commonly used in digital data bus, video pair, MIL-STD-1553B (airborne/ground, primary/redundant), base band circuit and any application for ""noise-free guarded"" circuits.
The TRB connector has bayonet coupling design with a centre contact and an intermediate cylindrical contact. The bayonet type can withstand severe shocks and vibrations. They are available in 2, 3 and 4-lug, push-on and threaded styles. They are commonly used in digital data bus, video pair, MIL-STD-1553B (airborne/ground, primary/redundant), base band circuit and any application for ""noise-free guarded"" circuits.
- SPECIFICATIONS:
- Dielectic Withstanding Voltage:
- Center contact to intermediate contact: 1000 Vrms/min; Size 12:500 Vrms/min
- Intermediate contact to outer contact: 400 Vrms/min; Size 12:200 Vrms/min
- Insulation Resistance: 5000 Megohms/min
- ontact Current Rating: 3.0 mps D.C. max; Size 1.5 Amps D.C. max
- Voltage rating: 500 Vrms @ sea level; Size 12:200 Vrms @ sea level
- Temperature rating: -65C to +165C
- Corrosion: MIL-STD-202 Method 101, Test Condition B
- Shock: MIL-STD-202 Method 213, Test Condition B
- Vibration: MIL-STD-202 Method 204, Test Condition B
- Thermal Shock: MIL-STD-202 Method 107, Test Condition B
- Durability: 1000 mate/unmate cycles/min
- Insulators: PTFE per ASTM-D 1710
- Spring Contactors
- Beryllium copper per ASTM-B196, Alloy UNS
- C17300 or leaded nickel copper, Alloy UNS
- C19150, Condition H
- Gold plated per ASTM-B488, Type III, Class1.25
- Shells
- Brass per ASTM-B16, Alloy UNS C36000
- Gold plated per ASTM-B488, Type III. Class 1.25
- Shells
