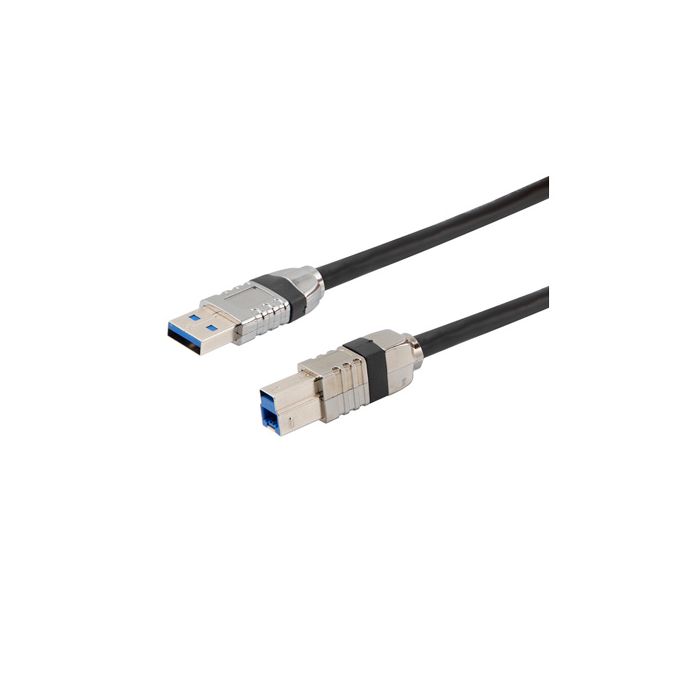

USB 3.0 Ruggedized Cable Assembly, A Male to B Male Die Cast Shells and Optional Vision Thumbscrews, 28-26-22AWG, PVC, BLK, 1.0M
$50.99
Availability: 100 In Stock
Part Number
MUS3A00065-1M
- Buy 10 for $48.95 each
- Buy 25 for $46.91 each
- Buy 100 for $44.87 each
- Buy 250 for $42.83 each
- Buy 500 for $40.79 each
Miletek's MUS3A00065, MUS3A00066 & MUS3A00067 series of USB 3.0 cable assemblies deliver fast performance combined with an extra rugged design. Die-cast metal USB connector shells make these cables able to take more of a beating than standard plastic molds. Available connector types include A, B, C and Micro B. The A, B and C type connectors have optional thumbscrews for use with Machine Vision applications (please see drawings for more details). Additionally, these assemblies use UL recognized jackets and have 22AWG power conductors for maximum power delivery. Standard lengths of 1, 2 and 3 meters are available off the shelf. Order online today..
Features
- Ruggedized Die-cast metal USB connectors
- Both A and B type connectors come with optional Machine Vision brackets for use with Vision applications
- Assembly built to USB 3.0 standards and speeds
- UL2725 style black PVC jacket
- 22AWG power conductors for maximum USB power transfer
Applications
- Industrial or Factory Automation
- Process engineering
- Machine Vision applications
- Data acquisition or PLC communications
- Test and measurement
