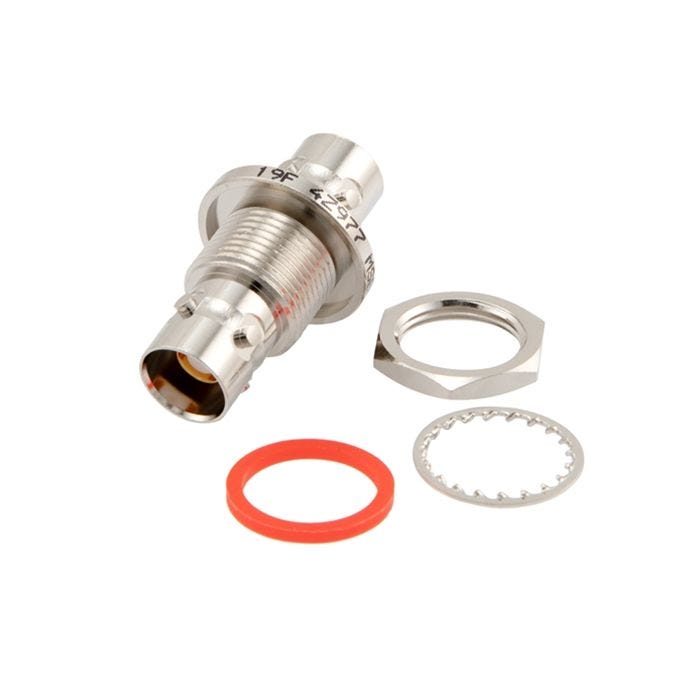

TRIAX TRB 4 LUG BULKHEAD JACK FEEDTHROUGH NON-INSULATED BARREL FRONT MOUNT PANEL JACK

$24.31
Availability: 500 In Stock
Part Number
MSB00006
  • Buy 10 for $24.07 each
  • Buy 25 for $23.82 each
  • Buy 100 for $23.58 each
  • Buy 250 for $23.34 each
  • Buy 500 for $23.09 each
4-lug TRB Triax jack is common with the panel. Bulkhead jacks are available on both sides of the panel, allowing two separate cable assemblies to be connected. Tech Notes-Mounting: Jack is fed from the front of the panel to the rear, and secured with a washer and nut. Mounting Hole Size: D3.187 (Diameter = 0.505 to 0.510 inches; hole center to flat edge = 0.218 to 0.221 inches maximum panel thickness = 0.187 inches)
