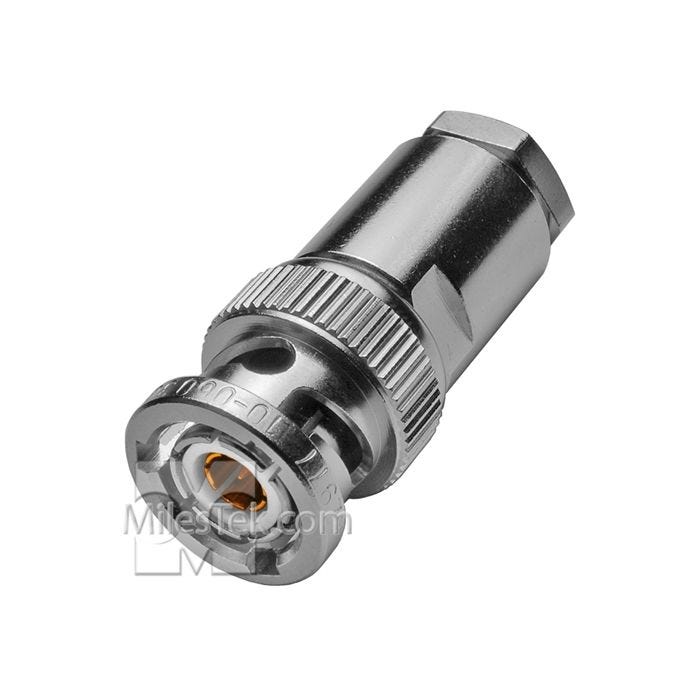

Twinaxial TRB 3-slot Cable Plug for Twinaxial Cable (0.242" OD)

Availability: 4523 In Stock
Part Number
  • Buy 10 for $22.36 each
  • Buy 25 for $22.14 each
  • Buy 100 for $21.91 each
  • Buy 250 for $21.69 each
  • Buy 500 for $21.46 each
The 3-slot, twinaxial solder/clamp type, 10-06030-210 is the most common MilesTek TRB plug series. This TRB plug has a bayonet coupling design with a center contact and an intermediate cylindrical contact. The bayonet type can withstand severe shocks and vibrations. Uses MilesTek 30-02001 laboratory-rated twinax cable, or Cinch Connectivity Solution’s TWC-78-2 twinax cable (Trompeter product line), or Belden 9272. It is RoHS compliant.

Tech Notes - The center contact is high (positive) connected to the twinax blue wire and the cylindrical contact is low (negative) connected to the twinax white wire. The connector body is tied to the cable shield.
