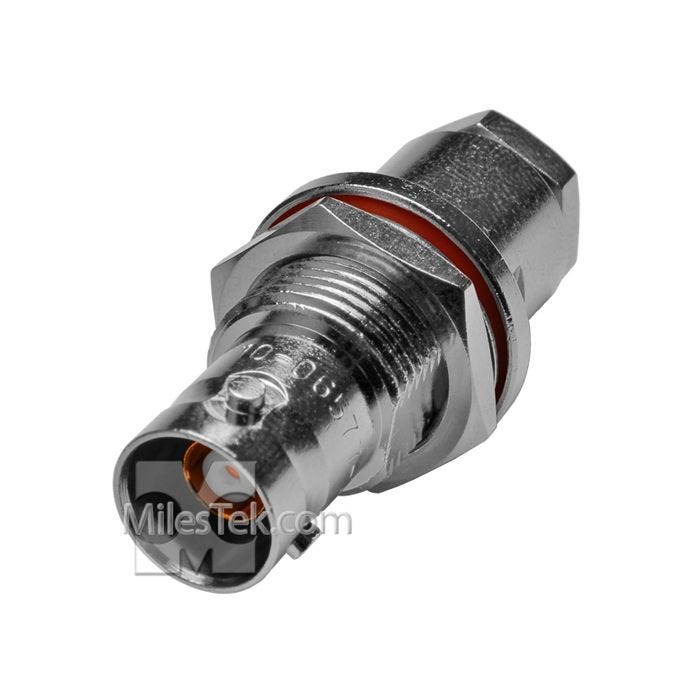

Twinaxial TRB 3-lug Bulkhead Jack (30-02003)

Availability: 328 In Stock
Part Number
  • Buy 10 for $31.65 each
  • Buy 25 for $31.33 each
  • Buy 100 for $31.01 each
  • Buy 250 for $30.69 each
  • Buy 500 for $30.37 each
TRB bulkhead cable jacks attach directly to panels (front-mount) for convenience (as opposed to solder-pot jacks). TRB jack is not insulated (non-isolated) from the panel. It will use the common signal of the panel. The bulkhead jack end will appear on the front of the panel, and mates to TRB plugs using the bayonet coupling design. The -231 model is designed to fit laboratory-rated 30-02003 twinaxial cable, or Cinch Connectivity Solution’s TWC-78-1 twinaxial cable (Trompeter product line). It is RoHS compliant.

Tech Notes - Mounting: Jack is fed from the rear of the panel to the front, and secured via washer. Tooling: The center contact is high (positive) connected to the twinax blue wire and the cylindrical contact is low (negative) connected to the twinax white wire. The connector body is tied to the cable shield.
