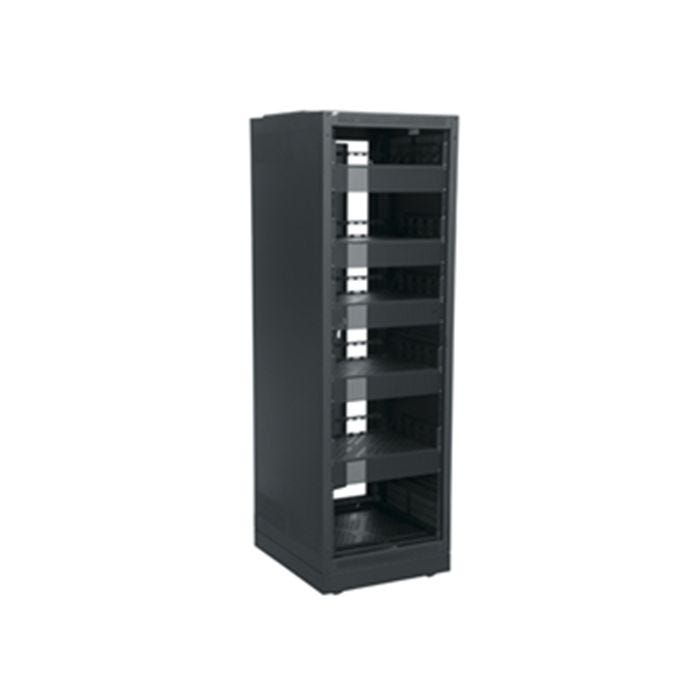

MIDDLE ATLANTIC ERK CONFIGURED AV RACK KIT, 35 RACK SPACE, 25” OUTSIDE DEPTH
$2,129.56
Availability: In Stock
Part Number
ERK-3525-CONFIG
ERK CONFIGURED
AV RACK KIT,
35 RACK SPACE, 25” OUTSIDE DEPTH – MIDDLE ATLANTIC PART ERK-3525-CONFIG - MILESTEK PART # 50-70917
The ERK series provides a stand-alone rack enclosure with ganging capabilities. Specify an ERK for your budget-conscience projects and when solid sides are preferable. This rack system provides unparalleled quality at an unbeatable value.
Our 50-70917 ERK Configured AV Rack Kit Includes:
General Structural Features of ERK Rack System:
The ERK series provides a stand-alone rack enclosure with ganging capabilities. Specify an ERK for your budget-conscience projects and when solid sides are preferable. This rack system provides unparalleled quality at an unbeatable value.
Our 50-70917 ERK Configured AV Rack Kit Includes:
- Racking height 61 1/4” or 35 rack spaces (overall height 65-3/8”)
- 25” outside depth (23 15/32" usable depth)
- 22” overall width
- Integrated fan top
- Configurable rear door with bottom vent, solid locking front door
- Welded side panels with vent blockers to control airflow
- 3-1/4” wide vertical lacer strip
- Six horizontal lacer bars
- Twelve 8” Velcro cable management straps
- (2) 10 outlet thin power strips, 20 Amps
- Leveling feet
- 100 qty. 10-32 mounting hardware
General Structural Features of ERK Rack System:
- Fully welded construction, solid sides
- 2,500 lb. weight capacity
- Seismic certified (UBC 1997 & CBC 1998 Zone 4; IBC 2000, IBC 2003, ASCE 7 - 02, NFPA 5000 Seismic Use Group III) for protecting 650 lbs. of essential equipment.
- 1/2", 3/4", 1" and 1-1/2" electrical knockouts found on removable split rear plates, top knockout plate additionally includes UHF/VHF antenna knockouts
- 16-gauge steel tops, bottoms, & sides
- Laser-cut 1/8" thick internal steel braces for strength
- 1 pair fully-adjustable front rack rail
- Large cable entry in bottom
- Grounding and bonding stud installed in base
- Configurable top (44, 40, 35 rack space), solid top with fan knock-outs (27, 21, 18 rack space)
- Laser knock-outs in side panels for cable pass-through (44, 40, 35 rack space only)
- Finished in a durable black textured powder coat
- UL Listed in the US and Canada
