MIDDLE ATLANTIC 2 RS SIDEWAYS PANEL MOUNT

$135.25
Availability: In Stock
Part Number
SPM-2

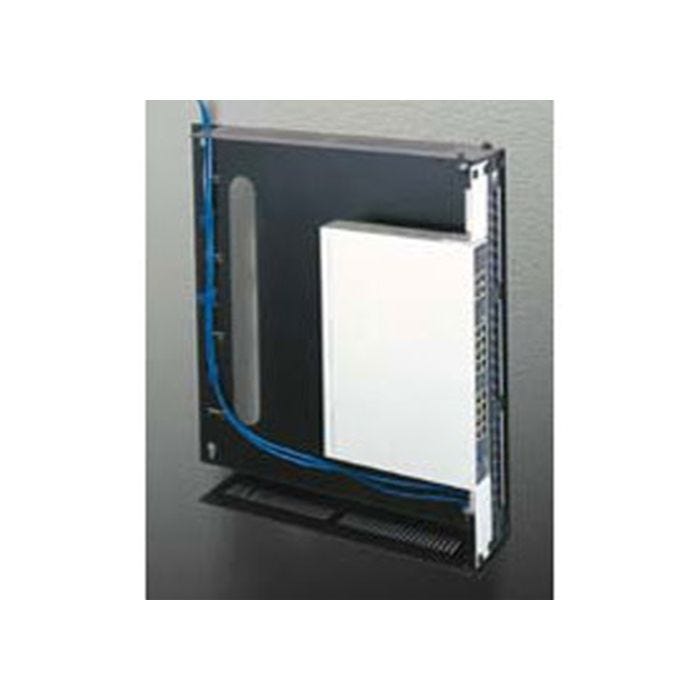

[MID ATL] 2 RS SIDEWAYS PANEL MOUNT SPM-2 - MILESTEK PART NUMBER 50-70410 Low-profile wallmount rack shall be Middle Atlantic Products part number SPM-2 with 2 useable rackspaces. Rack shall have three position adjustable rackrail to allow for three combinations of front clearance and useable depth. Rackrail can be set flush with front of rack which allows a full 19 of component depth, 1.5 from the front for 17.5 of component depth, or 3 from the front for 16 of component depth. Rack shall be constructed of phosphate pre-treated 16-gauge steel finished in a durable black powder coat. Features:
  • 2-Space Steel Sideways Panel Mount.
  • Low-profile mounting for deep hubs, routers and other network components-flat against the wall, under tables, desks, or in cabinetry.
  • 16-gauge body with all-steel front cover.
  • Pre-installed, 1/8" thick, 11-gauge, 10/32" threaded rackrail.
  • 2-Space mount has 3-1/2" racking height/ 50 lb. capacity.
  • Rack screws provided.
Size and Capacity:
      Outside Width: 20.168"
      Outside Depth: 3.92" Overall
      Outside Height: 20.18"
      Usable Width: 19"
      Usable Depth: 16"
      Usable Height: 3.5"
      Rack Spaces: 2
      Load Capacity: 50 lbs.
