QUICKPORT CAT6+ EXTREME JACK LT ALMOND

$11.09
Out of stock
Part Number
LE-61110-RT6

Product is no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.
Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

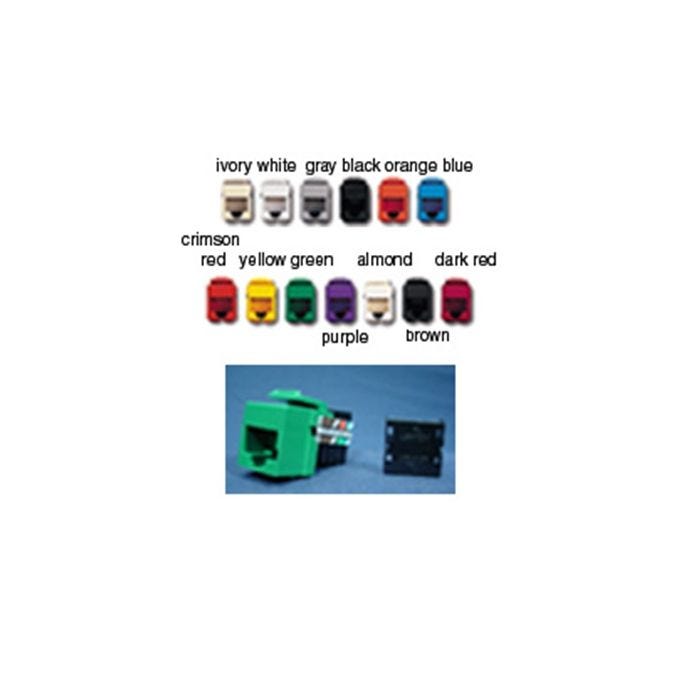

[LEVITON] QUICKPORT CAT6+ EXTREME JACK LIGHT ALMOND - PART# LE-61110-RT6 APPLICATION Leviton's eXtreme 6+ Connector is designed to be used with all Leviton QuickPort compatible products. The connectors include Leviton's patented "Retention Force Technology" (RFT) which promotes consistent performance over the life of the system. Includes unique pair separation towers allowing for quicker and easier terminations. The connector is configured in a 180 configuration such that the punch field is in the back, allowing for rear termination. FEATURES
  • Exclusive cutting ledge combines termination and trim into one labor-saving step
  • Individual-port configurability allows specification flexibility
  • Robust one-piece lead-frame design
  • Narrow connector allows high port density in a small area
  • Voice Grade and USOC wire configuration labels
STANDARDS COMPLIANCE eXtreme 6+ system components meet or exceed the requirements for channel and component-level performance for TIA/EIA Category 6, cULus Listed, NOM and ACA. PHYSICAL SPECIFICATIONS
  • Dimensions: .901"H x .575"W x 1.246"D
  • Materials: Connector body is high-impact, fire-retardant plastic rated UL 94V-0. Spring wire contacts are high quality copper-based alloy, plated with 50 micro-inches of gold over 100 microinches of nickel for lowest contact resistance, maximum life.
Revised 10/09
