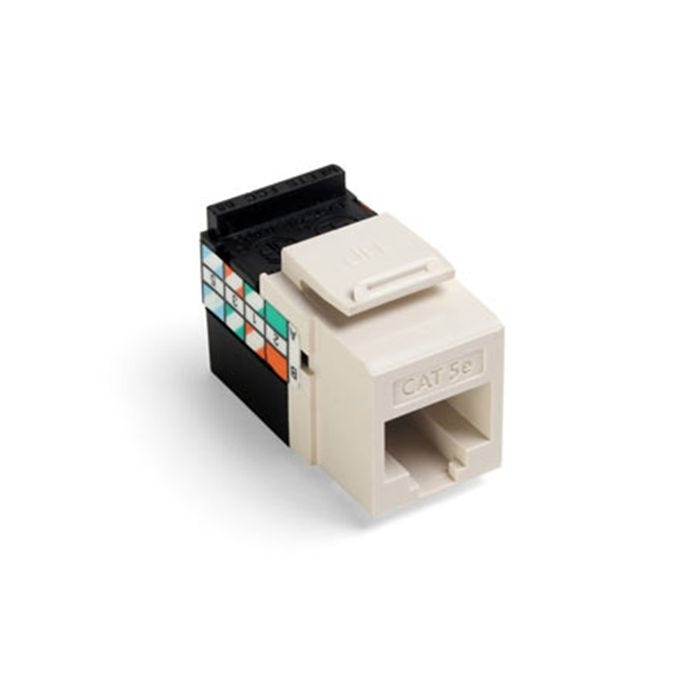

QUICKPORT CAT5E GIGAMAX JACK LT ALMOND

[LEVITON] QUICKPORT CAT5E GIGAMAX JACK LIGHT ALMOND - PART# LE-5G108-RT5 APPLICATION Modular connector for Category 5e UTP structured cabling systems. Uses include high megabit applications such as Gigabit Ethernet and 622 Mbps ATM. FEATURES

• Available in 13 different colors
• Dual wiring code label allows connector to be wired to either T568A or T568B
• Individual port configurability allows specification flexibility
• Robust one-piece lead-frame design
• Narrow connector allows high port density in a small area
• Performance supports high megabit and shared-sheath applications
• Comes in a bulk package of 25

STANDARDS COMPLIANCE Meets all applicable standards: UL Listed; complies with all TIA/EIA-568-B requirements; and meets FCC Part 68. PHYSICAL SPECIFICATIONS

• .89"H x .635"W x 1.178"D
• Materials: Connector body is high-impact, fire-retardant plastic rated UL 94V-0. Spring wire contacts are high-quality phosphor bronze, plated with 50 micro-inches of gold over 100 microinches of nickel for lowest contact resistance, maximum life. Connector 110-style IDC contacts are solder-plated phosphor bronze.

Revised 10/09
