6-STUB COMPACT TERM COUPLER

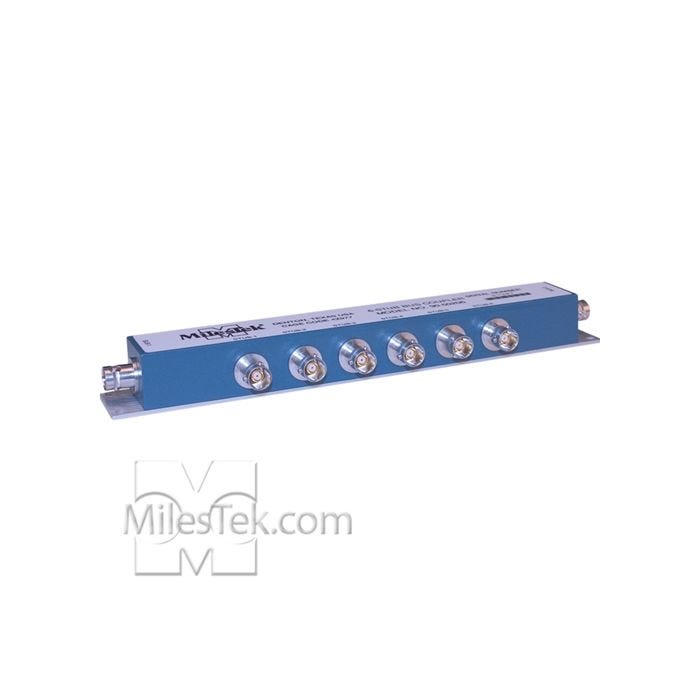

6-STUB COMPACT TERM COUPLER - 90-50216 This is a single-terminated, 6-stub compact data bus coupler. The bus coupler is connected between MIL-STD-1553B bus and bus devices (controllers, monitors and terminals). The purpose of a bus coupler is to reduce reflections, protect the bus and maintain impedance of the bus by employing a transformer and a pair of fault-isolation resistors.
