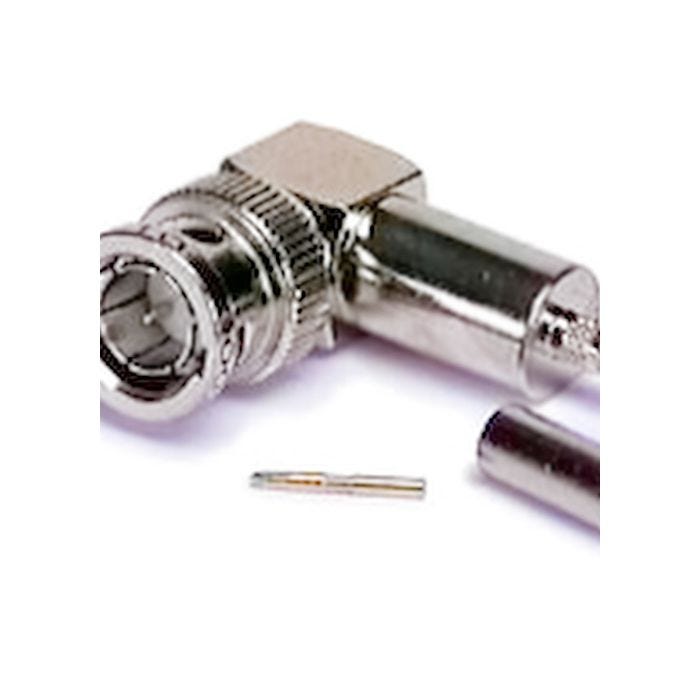

R/A BNC CRIMP PLUG 75 OHM 735A DS3
$22.89
Out of stock
Part Number
10-03002-205
- Buy 10 for $21.52 each
- Buy 25 for $20.14 each
- Buy 100 for $18.77 each
- Buy 250 for $17.40 each
- Buy 500 for $16.02 each
Product is no longer available
This product has been discontinued and has run out of stock. We apologize for the inconvenience.
Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.
R/A BNC CRIMP PLUG 75 OHM 735A DS3 - PART# 10-03002-205
For larger quantities, please call for volume pricing
90 degree straight BNC plug for 735A. Designed by MilesTek in 1991 for the telephone central office DSX-3 installer. During installation, the 75 OHM center pin becomes captive when pushed into the teflon dielectric inside the plug's body, preventing the coaxial cable's center conductor from withdrawing from the connector during normal contraction.
- FEATURES:
- True 75 Ohm BNC PLugs
- Cable:735A
- Crimp sleeve: Hex .178.
- Telco Central Office DS3
- Diamond knurled for maximum oull strength when crimped onto the cable
- Diamond knurled for maximum pull strength when crimped onto the cable
- Center pin 30 " gold plating
- Teflon securely captivates pin
- Machined, nickel-plated body
- ELECTRICAL SPECIFICATIONS:
- Impedence: 75 Ohm
- Frequency Range: Tested to 3 GHz
- Working Voltage: 500 VRMS
- Dielectric Withstanding Voltage: 1500 VRMS
- VSWR: 1.05 + 0.1f (GHz) DC to 1 GHz
- Contact Resistance: Center Contact 1.5 milliohms, Outer Contact 1.0 milliohms
- Insulation Resistance: 5000 megohms (min.)
