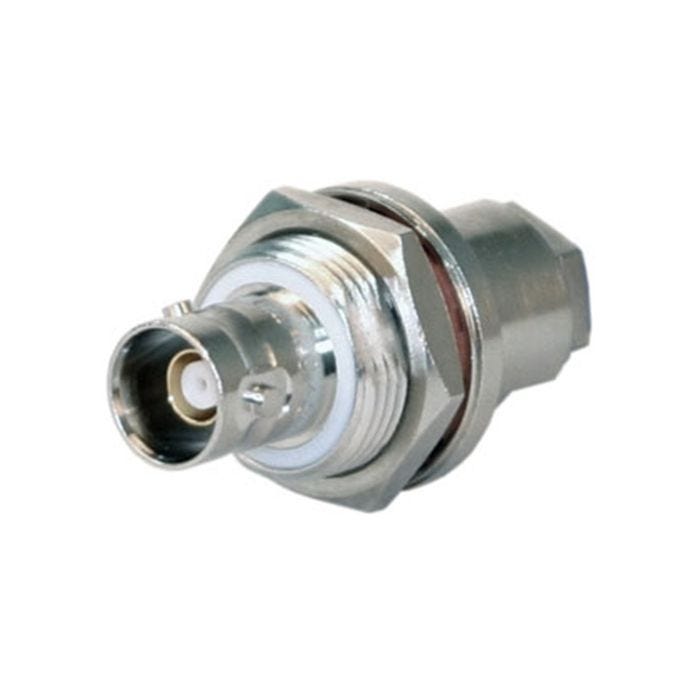

10-06573-206 MilesTek TRB Twinaxial Bulkhead Jack to Cable entry 3-Lug Female Isolated for M17/176-00002 cable

$48.19
Availability: 510 In Stock
Part Number
10-06573-206
MilesTek TRB Twinaxial Bulkhead Jack to Cable entry 3-Lug Female Isolated for M17/176-00002 cable - 10-06573-206



This TRB connector has a bayonet coupling design with a center contact and an intermediate cylindrical contact. The bayonet type can withstand severe shocks and vibrations. Uses standard M17/176-00002 twinax cable. It is RoHS compliant.

It is insulated (or “isolated”) and will use an independent signal from the panel’s common signal (if present).

The most popular 3-lug type is standard. Call or email us for 2-lug, 4-lug, and threaded alternate mating interface versions, available with or without bend relief springs, isolated or non-isolated, to fit your project needs. For more information about this product, refer to the drawing tab, catalog tab, or give us a call – we are always glad to hear from you.

Tech Notes - The center contact is high (positive) connected to the twinax blue wire and the cylindrical contact is low (negative) connected to the twinax white wire. The connector body is tied to the cable shield.
