F PLUG SEALED RG6 QUAD CONNECTOR & BACKNUT
$1.35
Out of stock
Part Number
10-16043-224
Product is no longer available
This product has been discontinued and has run out of stock. We apologize for the inconvenience.
Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

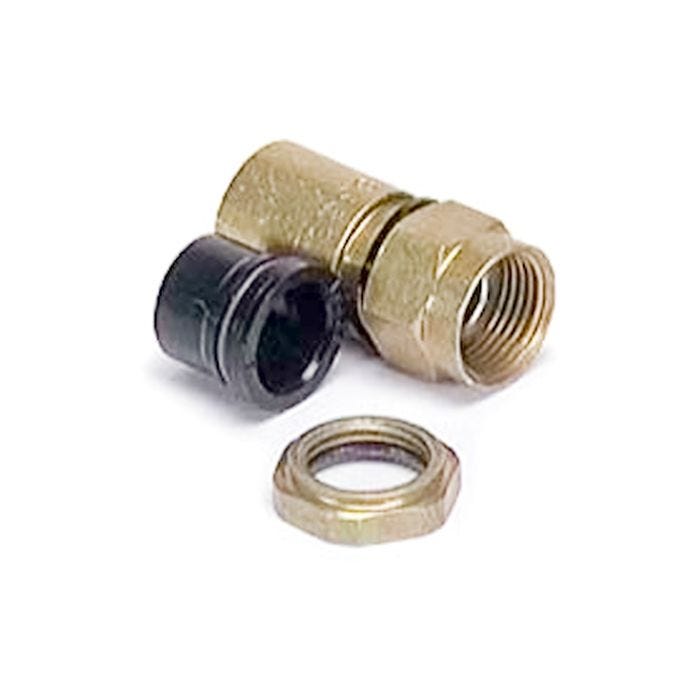

F Plug Sealed RG6 Quad Connector & back nut - 10-16043-224
Snap-N-Seal is an environmentally sealed F-type coax connector system for harsh environments. Through a unique 360 degree compression process, Snap-N-Seal also offers the signal leakage protection required for todays systems.
Permanently stamped part number and color-coded sleeves for easy identification before and after installation.
- FEATURES:
- Quad sealed system prevents moisture from migrating into the connection
- 360 radial compression provides superior RF integrity (-95dB typical, 60% bonded foil cable)
- 1/4"x 1/4" cable preparation
- Connector to cable retention 40 lbs minimum
- Superb return loss performance of -30dB to 1GHz
- Manufactured of high quality 360 brass, cadmium plated with yellow chromate coating for maximum corrosion resistance
- UV resistant plastic and O-rings provide a reliable environmentally sealed connector
