BNC CRIMP PLUG 75 OHM 735A DS3

BNC CRIMP PLUG 75 OHM 735A DS3 - PART# 10-03001-205

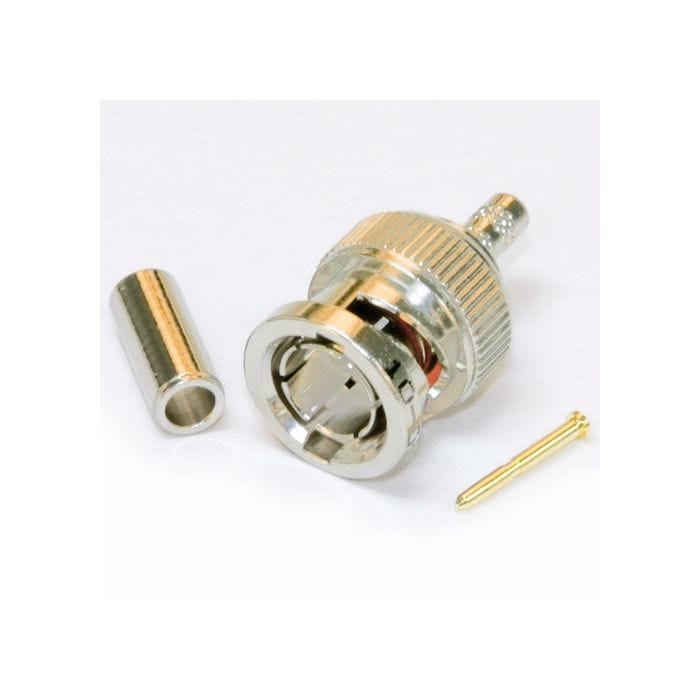

180 degree straight BNC plug for 735A. Designed by MilesTek in 1991 for the telephone central office DSX-3 installer. During installation, the 75 OHM center pin becomes captive when pushed into the teflon dielectric inside the plug's body, preventing the coaxial cable's center conductor from withdrawing from the connector during normal contraction.

FEATURES:
• True 75 Ohm BNC Plugs
• Cable:735A
• Crimp sleeve: Hex .178.
• Telco Central Office DS3
• Diamond knurled for maximum pull strength when crimped onto the cable
• Center pin 30 " gold plating
• Teflon securely captivates pin
• Machined, nickel-plated body

ELECTRICAL SPECIFICATIONS:
• Impedence: 75 Ohm
• Frequency Range: Tested to 3 GHz
• Working Voltage: 500 VRMS
• Dielectric Withstanding Voltage: 1500 VRMS
• VSWR: 1.05 + 0.1f (GHz) DC to 1 GHz
• Contact Resistance: Center Contact 1.5 milliohms, Outer Contact 1.0 milliohms
• Insulation Resistance: 5000 megohms (min.)

Notes:
1. Use Telco CO Termination Kit 40-50176
2. Use 12 PT Crimper 40-15005, Corex Cable Stripper 40-11209, Crimper 40-13204.
3. Cable strip dimensions: 0.327" (braid), 0.146" (dielectric), 0.158" (center conductor).
