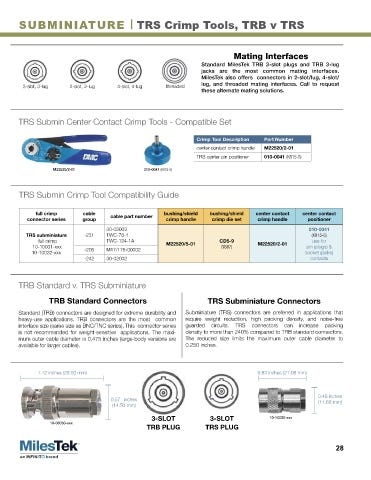

SUBMINIATURE TRS Crimp Tools, TRB v TRS

Mating Interfaces
Standard MilesTek TRB 3-slot plugs and TRB 3-lug
jacks are the most common mating interfaces.
MilesTek also offers connectors in 2-slot/lug, 4-slot/
lug, and threaded mating interfaces. Call to request
3-slot, 3-lug 2-slot, 2-lug 4-slot, 4-lug threaded
these alternate mating solutions.

TRS Submin Center Contact Crimp Tools - Compatible Set

Crimp Tool Description Part Number
center contact crimp handle M22520/2-01
TRS center pin positioner 010-0041 (K815-S)

M22520/2-01 010-0041 (K815-S)

TRS Submin Crimp Tool Compatibility Guide

C
full crimp cable bushing/shield bushing/shield center contact center contact
M cable part number
connector series group crimp handle crimp die set crimp handle positioner
Y
30-02003 010-0041
CM TRS subminiature -231 TWC-78-1 (K815-S)
full crimp TWC-124-1A CD5-9 use for
MY M22520/5-01 M22520/2-01
10-10031-xxx (Y687) pin (plugs) &
CY 10-10032-xxx -206 M17/176-00002 socket (jacks)
-242 30-02002 contacts
CMY
K
TRB Standard v. TRS Subminiature

TRB Standard Connectors TRS Subminiature Connectors
Standard (TRB) connectors are designed for extreme durability and Subminiature (TRS) connectors are preferred in applications that
heavy-use applications. TRB connectors are the most common require weight reduction, high packing density, and noise-free
interface size (same size as BNC/TNC series). This connector series guarded circuits. TRS connectors can increase packing
is not recommended for weight-sensitive applications. The maxi- density to more than 240% compared to TRB standard connectors.
mum outer cable diameter is 0.475 inches (large-body versions are The reduced size limits the maximum outer cable diameter to
available for larger cables). 0.250 inches.

1.12 inches (28.50 mm) 0.83 inches (21.08 mm)

0.46 inches
0.57 inches (11.68 mm)
(14.50 mm)
3-SLOT 3-SLOT 10-10030-xxx
10-06030-xxx
TRB PLUG TRS PLUG
