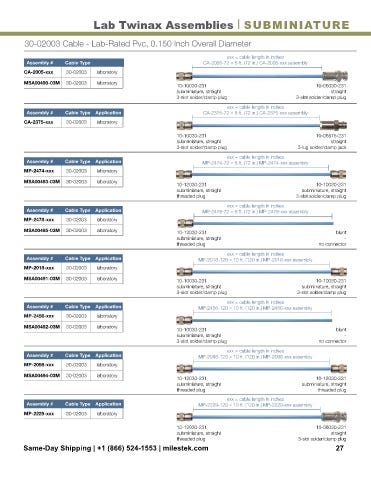

Lab Twinax Assemblies SUBMINIATURE

30-02003 Cable - Lab-Rated Pvc, 0.150 Inch Overall Diameter

xxx = cable length in inches
Assembly # Cable Type CA-2005-72 = 6 ft. (72 in.) CA-2005-xxx assembly
Application
CA-2005-xxx 30-02003 laboratory
MSA00490-03M 30-02003 laboratory
10-10030-231 10-06030-231
subminiature, straight straight
3-slot solder/clamp plug 3-slot solder/clamp plug
xxx = cable length in inches
Assembly # Cable Type Application CA-2375-72 = 6 ft. (72 in.) CA-2375-xxx assembly
CA-2375-xxx 30-02003 laboratory

10-10030-231 10-06575-231
subminiature, straight straight
3-slot solder/clamp plug 3-lug solder/clamp jack
xxx = cable length in inches
Assembly # Cable Type Application MP-2474-72 = 6 ft. (72 in.) MP-2474-xxx assembly
MP-2474-xxx 30-02003 laboratory
MSA00493-03M 30-02003 laboratory
10-12030-231 10-10030-231
subminiature, straight subminiature, straight
threaded plug 3-slot solder/clamp plug

C xxx = cable length in inches
Assembly # Cable Type Application MP-2478-72 = 6 ft. (72 in.) MP-2478-xxx assembly
M
MP-2478-xxx 30-02003 laboratory
Y
MSA00495-03M 30-02003 laboratory
CM 10-12030-231 blunt
subminiature, straight -
MY threaded plug no connector
CY xxx = cable length in inches
Assembly # Cable Type Application
CMY MP-2018-120 = 10 ft. (120 in.) MP-2018-xxx assembly
MP-2018-xxx 30-02003 laboratory
K
MSA00491-03M 30-02003 laboratory 10-10030-231 10-10030-231
subminiature, straight subminiature, straight
3-slot solder/clamp plug 3-slot solder/clamp plug
xxx = cable length in inches
Assembly # Cable Type Application MP-2456-120 = 10 ft. (120 in.) MP-2456-xxx assembly
MP-2456-xxx 30-02003 laboratory
MSA00492-03M 30-02003 laboratory
10-10030-231 blunt
subminiature, straight -
3-slot solder/clamp plug no connector
xxx = cable length in inches
Assembly # Cable Type Application MP-2098-120 = 10 ft. (120 in.) MP-2098-xxx assembly
MP-2098-xxx 30-02003 laboratory

MSA00494-03M 30-02003 laboratory
10-12030-231 10-12030-231
subminiature, straight subminiature, straight
threaded plug threaded plug
xxx = cable length in inches
Assembly # Cable Type Application MP-2229-120 = 10 ft. (120 in.) MP-2229-xxx assembly
MP-2229-xxx 30-02003 laboratory

10-12030-231 10-06030-231
subminiature, straight straight
threaded plug 3-slot solder/clamp plug
Same-Day Shipping | +1 (866) 524-1553 | milestek.com 27
